Rear Subframe Torque

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing, align both installation reference holes in the subframe with the reference holes in the body using a screwdriver or tapered punch as a guide.
After removing the subframe mounting bolts, be sure to replace them with new ones.

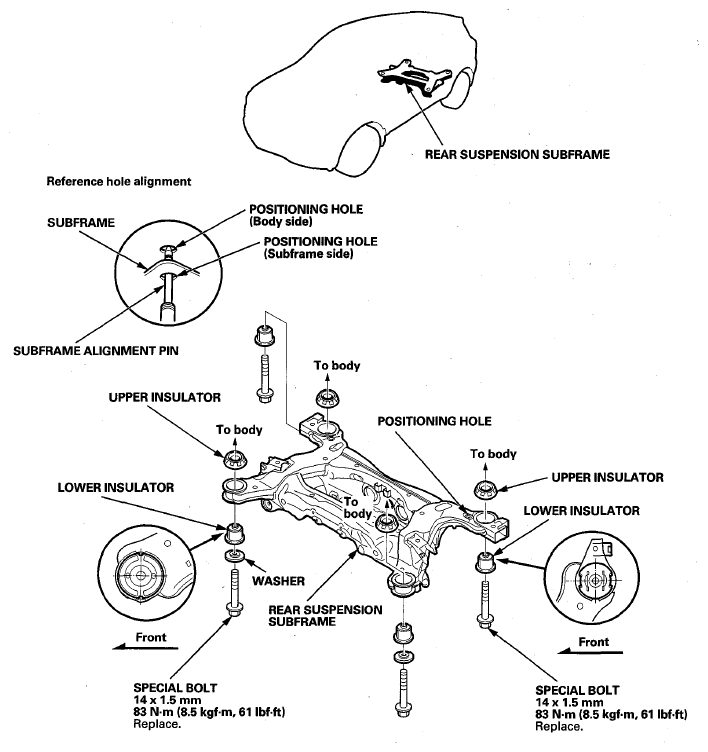

Fig 1: Aligning All Of Positioning Holes In Rear Subframe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
