Headlight Leveling Motor Input Test
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to LOCK (0).

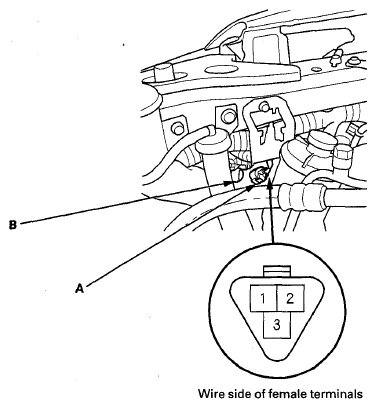

- Disconnect the 3P connector (A) from the headlight leveling motor (B).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
- Reconnect the connector to the headlight leveling motor, and do the following input tests:
- If any tests indicate a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the headlight leveling motor
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained 1 BRN Ignition switch ON (II) Measure the voltage to ground:
There should be about 2-12 V. NOTE: Depending on the headlight leveling position.- Faulty headlight leveling control unit
- An open or high resistance in the wire
2 GRN Ignition switch ON (II) Measure the voltage to ground:
There should be less than 0.2 V.- Faulty headlight leveling control unit
- An open or high resistance in the wire
3 BLU Ignition switch ON (II) Measure the voltage to ground:
There should be battery voltage.- Faulty headlight leveling control unit
- An open or high resistance in the wire
