FTP Sensor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift.
Remove the EVAP canister cover (A).

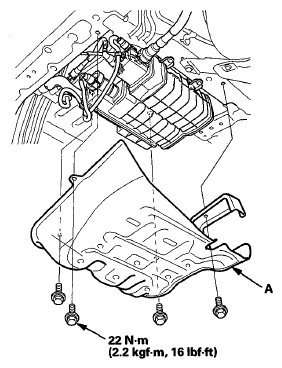

Fig 1: EVAP Canister Cover And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the FTP sensor 3P connector (A).

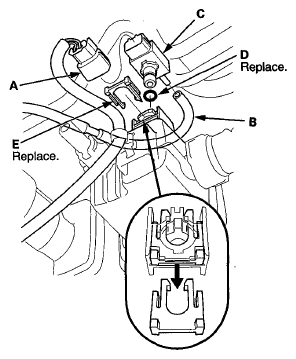

Fig 2: Identifying FTP Sensor 3P Connector, Hose, FTP Sensor, O-Ring And Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hose (B), and remove the FTP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).

NOTE: Do not coat the O-ring with oil.
