System Indicator: Notes
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

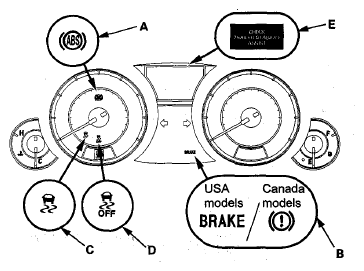

This system has four indicators and one warning:
- ABS indicator (A)
- Brake system indicator (B)
- VSA indicator (C)
- VSA OFF indicator (D)
- Trailer stability assist warning (E)
When the system detects a problem, it will turn the appropriate indicator on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.
When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), then goes off.
