TCS (Traction Control System) Features

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

When a drive wheel loses traction on a slippery road surface and starts to spin, the VSA modulator-control unit applies brake pressure to the spinning wheel and sends an engine torque control request to the PCM to slow the spinning wheel and keep traction.

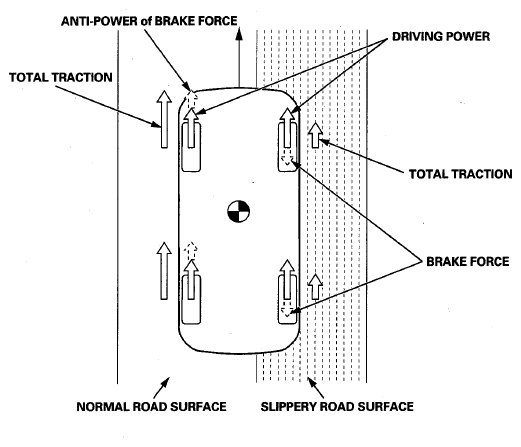

Fig 1: Traction Control System Diagram
G08053109Courtesy of AMERICAN HONDA MOTOR CO., INC.
