Audio Unit Connector C (24P)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

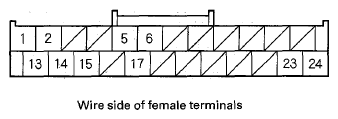

Fig 1: Identifying Audio Unit Connector C (24P) Connector Terminals
G08054099Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Terminal Name Connect to
C1 RED AUX SIG GND Auxiliary jack assembly
C2 BRN(1) SH AUX Shield for terminals No. 1, No. 13, and No. 14
C5 PUR LINE OUT- HandsFreeLink control unit
C6 BRN(1) LINE OUT SH Shield for terminals No. 5 and No. 17
C13 BLK AUX RCH Auxiliary jack assembly
C14 WHT AUX LCH Auxiliary jack assembly
C15 LT BLU AUX DET Auxiliary jack assembly
C17 LT BLU LINE OUT+ HandsFreeLink control unit
C23 LT GRN B-CAN B-CAN communication bus line
C24 BLU HVAC BUS Climate control unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
