Audio Unit Connector D (14P)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

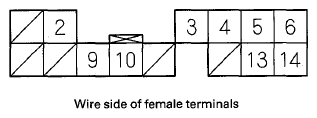

Fig 1: Identifying Audio Unit Connector D (14P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Cavity

Wire Color

Terminal Name

Connect to

RED

ACC

XM receiver

BRN⁽¹⁾

GA-NET BUS A SH

Shield for terminals No. 9 and No. 10

GRY⁽¹⁾

AUDIO SH

Shield for terminals No. 5, No. 6, No. 13, and No. 14

RED

AUDIO R+

XM receiver

BLK

AUDIO L+

XM receiver

GRN

GA-NET BUS A+

XM receiver

D10

RED

GA-NET BUS A-

XM receiver

D13

WHT

AUDIO R-

XM receiver

D14

GRN

AUDIO L-

XM receiver

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the out side of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
