Audio-Navigation Unit Connector B (24P)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

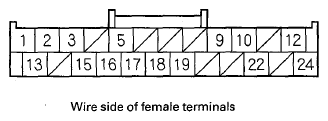

Fig 1: Identifying Audio-Navigation Unit Connector B (24P) Connector Terminals
G08054089Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Terminal Name Connect to
B1 WHT AUX LCH Auxiliary jack assembly
B2 RED AUX SIG GND Auxiliary jack assembly
B3 LT BLU AUX DET Auxiliary jack assembly
B5 LT BLU LINE OUT+ HandsFreeLink control unit
B9 PNK CTR PRE IN- Stereo amplifier
B10 BLU CTR PRE IN + Stereo amplifier
B12 GRN SW PRE IN + Stereo amplifier
B13 BLK AUX RCH Auxiliary jack assembly
B15 BRN(1) SH AUX Shield for terminals No. 1, No. 2, and No. 13
B16 PUR LINE OUT- HandsFreeLink control unit
B17 BRN(1) LINE OUT SH Shield for terminals No. 5 and No. 16
B18 RED GA-NET BUS B- Navigation display unit, HandsFreeLink control unit
B19 GRN GA-NET BUS B+ Navigation display unit, HandsFreeLink control unit
B22 BRN(1) GA-NET BUS B SH Shield for terminals No. 18 and No. 19
B24 RED SW PRE IN- Stereo amplifier
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
