Rear Power Window Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door panel (see FRONT DOOR SIDE SILL SEAL REPLACEMENT ), and disconnect the 14P connector from the rear power window switch.
  2. Remove the power window switch panel (see FRONT DOOR SIDE SILL SEAL REPLACEMENT ).
  3. Remove the three mounting screws and the rear power window switch (A).

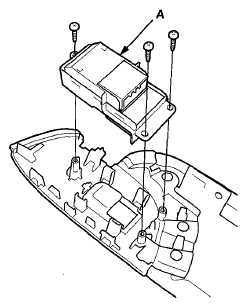

    Fig 1: Identifying 14P Connector On Rear Power Window Switch
    G08055429Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Swap the rear power window switch with another known-good power window switch and test. If the original power window switch is faulty; replace it.
  5. Install the switch in the reverse order of removal.
  6. Reset the power window control unit
