HandsFreeLink Control Unit Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tell the client they need to write down all phone numbers as there is no way to transfer the information in the original HandsFreeLink control unit to a new HandsFreeLink control unit.

Remove the center console rear trim (see CENTER CONSOLE REAR TRIM REMOVAL/INSTALLATION ).
Disconnect the connector (A).

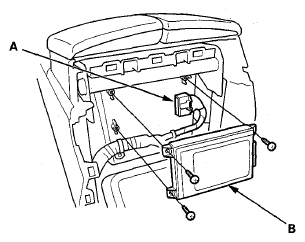

Fig 1: Identifying Connector And Handsfreelink Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws and HandsFreeLink control unit (B).
Install the HandsFreeLink control unit in the reverse order of removal.
After replacing the HandsFreeLink control unit, tell the client:
- They need to pair their phones to the system.
- They need to set up their system preferences.
