Navigation Display Unit Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
When prying components, use the KTC trim tool or equivalent.

Remove the dashboard center upper panel (see CENTER UPPER PANEL REMOVAL/INSTALLATION ).
Remove the screws (A) and bolt (B), then remove the display unit (C).

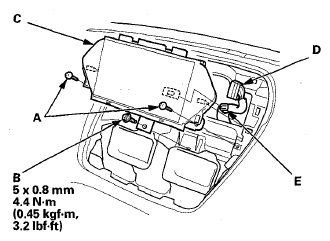

Fig 1: Navigation Display Unit And Related Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the navigation display unit connector (D), and detach the clip (E).
Install the unit in the reverse order of removal. Be careful not to drop the forward bolt behind the dashboard.
