Changing Camera Views
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

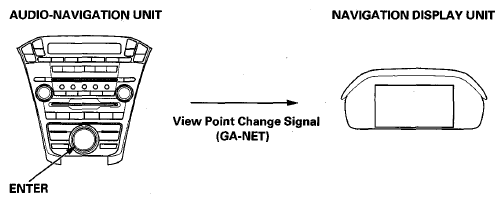

- When the rearview camera image is displayed, pressing the interface dial in (ENTER) sends a signal from the audio-navigation unit, to the navigation display unit using the GA-Net BUS to change the camera angle view.

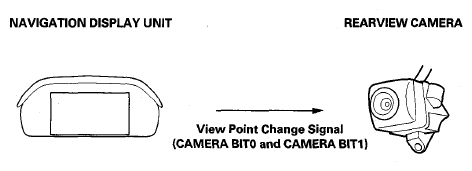

- The navigation display unit recognizes the signal, and sends a signal to the rearview camera using the CAMERA BITO and CAMERA BIT1 signal lines to change the rearview camera view.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Wide Normal Top Down CAMERA BITO Signal OFF (0 V) ON (8 V) OFF (0 V) CAMERA BIT1 Signal OFF (0 V) OFF (0 V) 0N (8 V) - The rearview camera takes the digital video using the input signal, then sends the rearview image to the navigation display unit using the NTSC lines. The rearview image appears on the navigation display unit.
