Multi-View Rear Camera System: Overview

The multi-view rear camera system three different view images of the rearview camera to the navigation display unit, and can be changed by user operation. The guiding lines also change according to the view selected. The camera is connected directly to the navigation display instead of the audio-navigation unit to improve the time for the rearview image to appear on the display.

• Normal View Mode

  The display shows the basic view.

• Wide View Mode

  The display shows wider visibility than the normal view, which helps the driver spot any objects to the right or left of the vehicle.

• Top Down View Mode

The display shows the view from the top angle of the vehicle, which helps the driver spot any objects directly behind the vehicle.

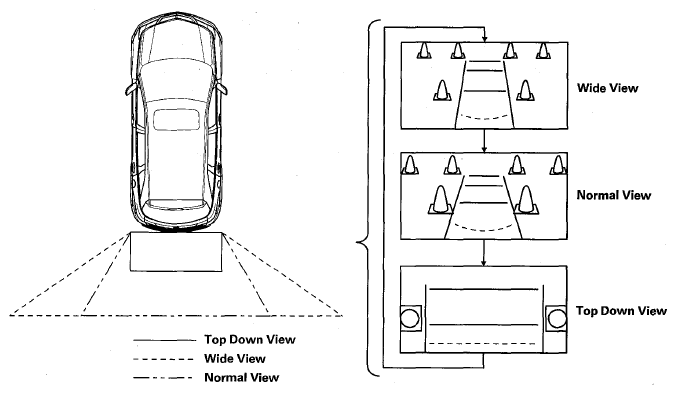

Fig 1: Identifying Multi-View Rear Camera System

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the vehicle is in R, the rearview camera image automatically appears on the navigation display. You can change the display while the vehicle is in R by pressing the interface dial. You can also adjust the rearview image brightness, and turn the yellow guide lines on and off.

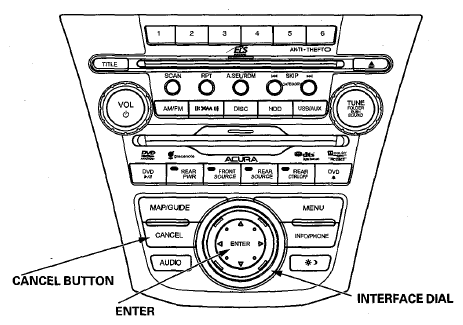

Fig 2: Identifying Cancel, Enter And Interface Dial Buttons On Navigation Display

Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENTER:

The camera image changes between the wide view, the normal view, and the top down view in this order.

CANCEL button:

Pressing and holding the CANCEL button for three seconds turns the guide lines on and off.

INTERFACE DIAL:

You can change the rearview camera image brightness by rotating the interface dial. The brightness adjustment is not affected by the screen brightness adjustment in Setup.
