Car Status: Version

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

This screen displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a service bulletin. Software may be loaded from a DVD or a USB device.

Flash: Displays the version of the navigation software in memory.
HDD: Displays the version of the navigation software in the navigation HDD.
USB: If displayed, this value represents the version of the USB software in the USB device.
Disc: If displayed, this value represents the version of the navigation software on the navigation DVD.
DSP: Displays the version of the DSP firmware.
IPL, APL, DBOOT, HDD, and APP, are all for factory use.
Model: For this model, the field should begin with STX.
Download: Do not touch, unless instructed by the factory or any other official Honda service information (like a service bulletin).

Check any official Honda service website for more service information about the navigation system.

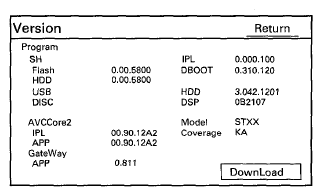

Fig 1: Displaying - Version

Courtesy of AMERICAN HONDA MOTOR CO., INC.

ERROR MESSAGE TABLE

Screen Error Message	Solution
System temp is too high. System will shut down until it cools down.	This message appears briefly when the audio-navigation unit temperature is too high, and then the display turns off until the temperature cools down. The system turns back on when the audio-navigation unit cools down
System reset.	This message appears five seconds after the display of System High Temp error.
HDD access error. System reset.	This message appears when the system is failed to read from HDD or write to HDD.
HDD access error. Please consult your dealer.	This message appears when the system detects the HDD is not connected or there is a HDD connecting error. The HDD data management area (file system) is damaged or the password is incorrect. Check any official Honda service website for more service information about the navigation system.
Display temp is too high. System will shut down until display cools down.	This message appears briefly when the display temperature is too high, and then the display turns off until the temperature cools down. The system turns back on when the display cools down.
