Unit Check (Quick Check): HDD
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

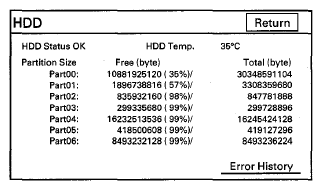

- This screen shows the HDD mount error and the temperature.
- The screen shows a list of total and free capacities of each partition.
- Select the Error History will display the error history occurred while reading or writing the data to HDD.
When the HDD status is OK, the connection between the HDD pins and the audio-navigation unit are good.
When the HDD status is NG, there is a connection problem between the HDD pins and the audio-navigation unit.
* When the HDD Status is NG, the screen does not show the free and total capacities of each partition, however, it shows the temperature.
