Unit Check (Quick Check): Notes

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some of the tests and screens that are displayed under the Unit Check are different from the other detailed checks.

To start the test, select the item you want to check starts.

Display
Radio
GPS
Aircon
HFL
Smart Card
Hard Key
Yaw Sensor
ECU Info.
Rear Camera
XM (without AcuraLink)
USB Memory Information
HDD
DVD Mech
RES (with rear entertainment)

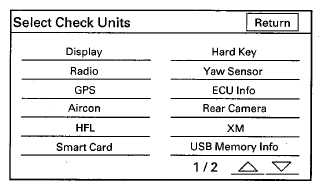

Fig 1: Displaying - Select Check Units (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

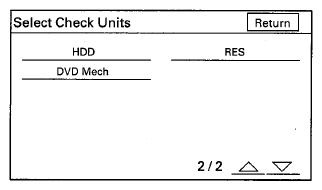

Fig 2: Displaying - Select Check Units (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
