Unit Check (Quick Check): Radio

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

This diagnostic screen checks the audio-navigation unit internal radio tuner and CD/DVD player. If connection is NG, replace the audio-navigation unit.

NOTE: If the XM link appears red, but the radio link appears green in the navigation system link, refer to audio system symptom troubleshooting.

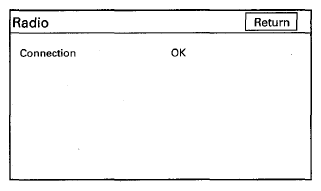

Fig 1: Displaying - Radio

Courtesy of AMERICAN HONDA MOTOR CO., INC.
