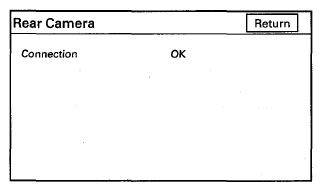

This test checks whether the rearview camera is connected to the navigation display unit.
When connection is shown NG, check the rearview camera signal line.
