XM Status

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

You can check the XM status in this screen.

Items	Condition Indicated
XM reception	Receiving Check Antenna No Signal Loading Expired
Traffic Signal Reception	Receiving Check Antenna No Signal Loading Expired
Traffic Indicator	TRF (green icon): Traffic information is available. TRF (white icon): Flow or incident data is not available. TRF (red icon): No traffic available (flow and incident).
Traffic Data	OK Invalid
Traffic Last Update	Last update time and date indicated.
Weather Signal Reception	Receiving Check Antenna No Signal Loading Expired
Weather Data	OK Invalid
Weather Last Update	Last update time and date indicated.

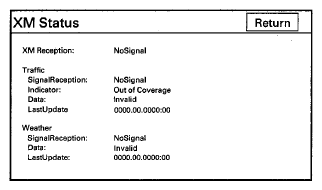

Fig 1: Displaying - XM Status

Courtesy of AMERICAN HONDA MOTOR CO., INC.
