Ignition Key Light Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the steering column upper and lower covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A).

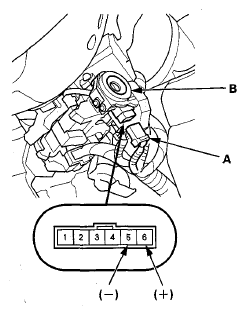

Fig 1: Identifying 6P Connector And LED
Courtesy of AMERICAN HONDA MOTOR CO., INC.
The LED (B) should come on when power is connected to the terminal No. 6 and ground is connected to terminal No. 5.
If the LED does not come on, replace the steering lock assembly (see STEERING LOCK REPLACEMENT ).
