M/T Model

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the clutch interlock switch connector (A).

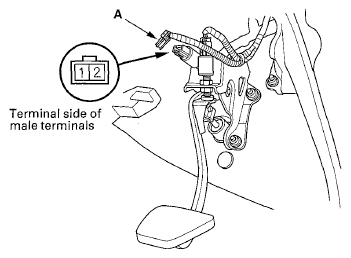

Fig 1: Identifying Clutch Interlock Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals according to the table below.
- If the continuity is not as specified, replace the clutch interlock switch.
- If OK, install the clutch interlock switch, and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).

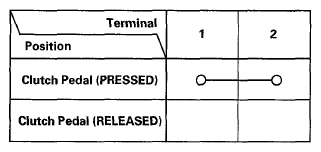

  Fig 2: Identifying Clutch Interlock Switch Connector Continuity Table
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
