Accelerator Pedal Module Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Disconnect the APP sensor connector (A).

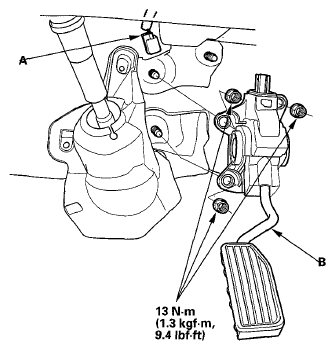

    Fig 1: APP Sensor Connector & Accelerator Pedal Module With Torque Specifications
    G05953085Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the accelerator pedal module (B).
    NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
  4. Install the parts in the reverse order of removal.
