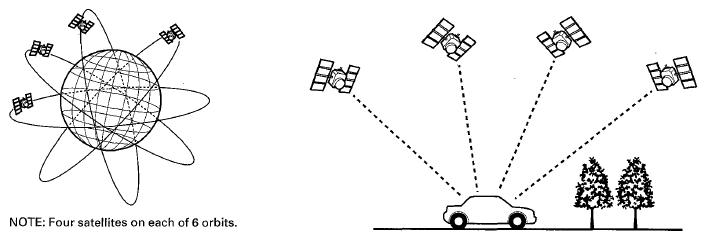

Position Detection Image With GPS Satellite
WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Four satellites on each of 6 orbits.
Precision of GPS
The precision of the GPS varies according to the number of satellites from which signals are received and the view of the sky. The accuracy is indicated by the color of the GPS icon shown on the display.
GPS SATELLITE CONDITION TABLE
| GPS ICON COLOR | NUMBER OF SATELLITES | CONDITION | DESCRIPTION |
|---|---|---|---|
| No GPS icon | None | Faulty reception | The GPS can't be utilized due to a faulty GPS receiver, open in the wire, or other fault or interference. |
| White GPS icon | 2 or less | Impossible to detect vehicle position | GPS function is normal. The satellite signals received by the GPS are too few to detect the vehicle position. |
| White GPS icon | 3 | Vehicle position detectable in 2 dimensions | The longitude and latitude of the vehicle position can be detected. (Less precise than detection in three dimensions) |
| Green GPS icon | 4 or more | Vehicle position detectable in 3 dimensions (elevation displayed) | The longitude, latitude and the altitude of the vehicle position can be detected. (More precise than detection in two dimensions) |
