Unit Check (Quick Check): Display

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

This performs additional checks on the communication bus between the navi CPU and the display. In addition, this test checks the internal electronic functions.

If the connection is NG, replace the audio-navigation unit.

Connection verifies internal communications.
The version represents the software version for the display.

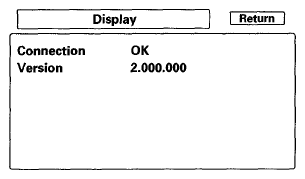

Fig 1: Identifying Screen Display - Software Version

Courtesy of AMERICAN HONDA MOTOR CO., INC.
