Yaw Sensor

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

This screen gives a quick test of the yaw sensor functionality based on the two voltages Sensor and Offset. For more information see the Yaw Rate Diagnostic.

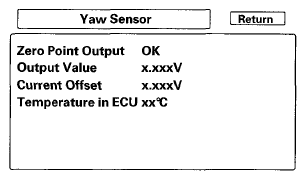

Fig 1: Identifying Screen Display - Yaw Sensor
G05960324Courtesy of AMERICAN HONDA MOTOR CO., INC.
