Ignition Key Switch Test

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column upper and lower covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A).

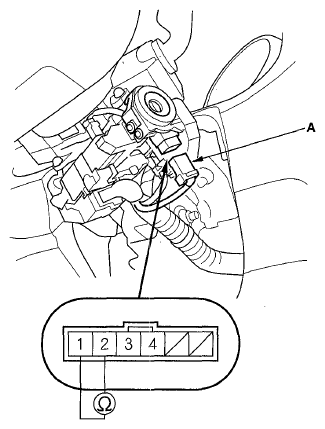

Fig 1: Identifying Ignition Key Switch & 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals No. 1 and No. 2.
- There should be continuity with the key in the ignition switch.
- There should be no continuity with the key removed.
If the continuity is not as specified; replace the ignition switch.
