With navigation: Notes

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

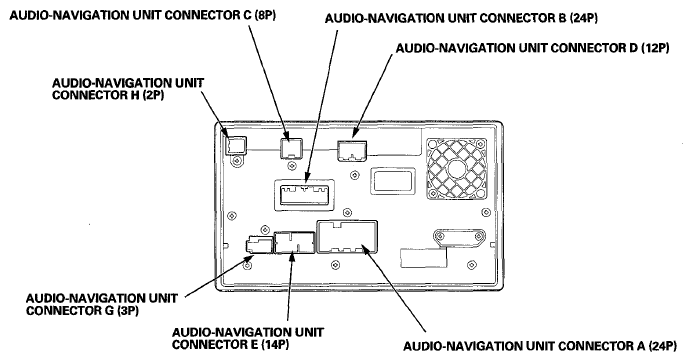

Fig 1: Identifying Audio Unit Connector For Inputs And Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the navigation section for audio-navigation unit connector C, D, and H input and outputs (see NAVIGATION SYSTEM CONNECTOR LOCATION ).
