Recirculation Control Motor Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

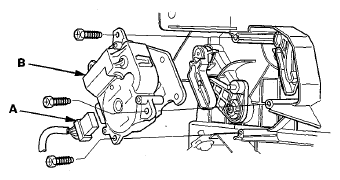

Fig 1: Locating 7P Connector And Recirculation Control Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
