Sunlight Sensor Replacement
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

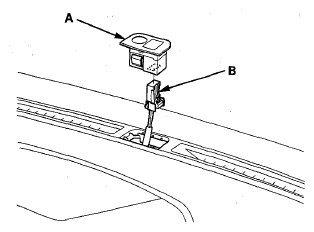

- Remove the sunlight sensor (A) from the dashboard, then disconnect the 5P connector (B). Be careful not to damage the sensor and the dashboard.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the sensor in the reverse order of removal.
