Humidity/In-Car Temperature Sensor Quality

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The capacitance of the humidity sensor changes by the adsorption and the evaporation of moisture. The resistance change of the humidity sensor changes the output voltage.

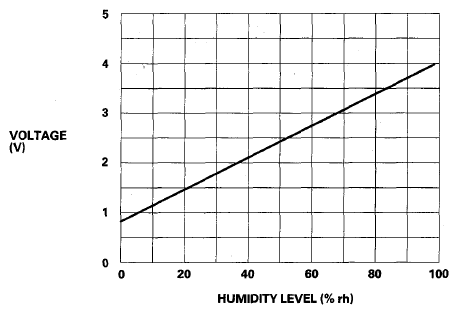

Fig 1: Humidity/In-Car Temperature Sensor Output Voltage Graph
G08057818Courtesy of AMERICAN HONDA MOTOR CO., INC.
