Humidity/In-Car Temperature Sensor

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The humidity sensor consists of two sensors. One sensor is for humidity detection, and the other is for in-car temperature detection. When the climate control unit receives signals about the in-car condition from the humidity sensor, and judges that the humidity in the vehicle is very low, the climate control unit reduces the A/C compressor run time. Engine power loss is kept to a minimum, and fuel economy is increased.

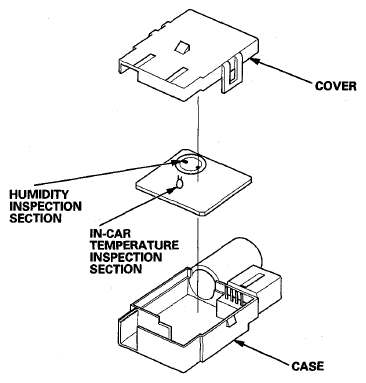

Fig 1: Identifying Humidity/In-Car Temperature Sensor Components
G08057817Courtesy of AMERICAN HONDA MOTOR CO., INC.
