Exploded View

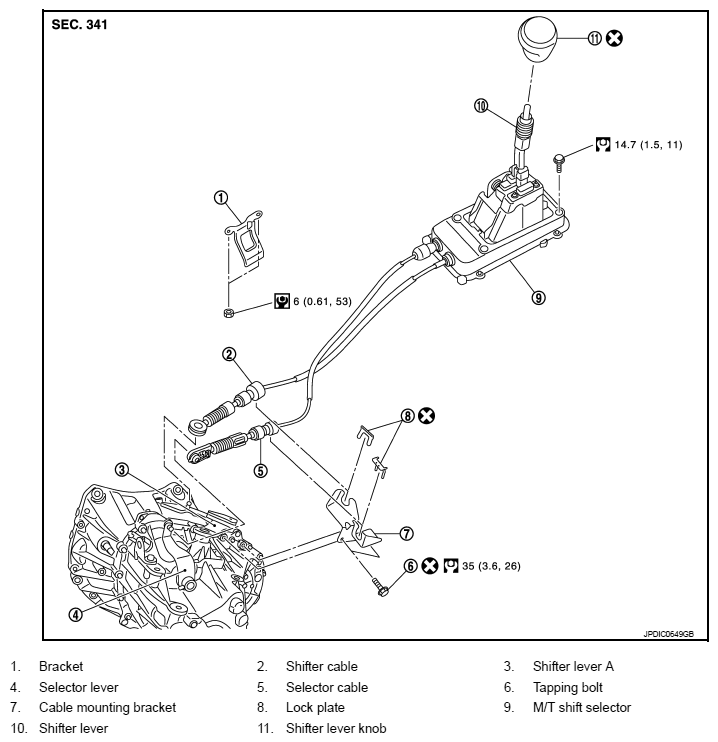

Fig 1: Exploded View Of Control Linkage
G08136159Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.
