Exploded View

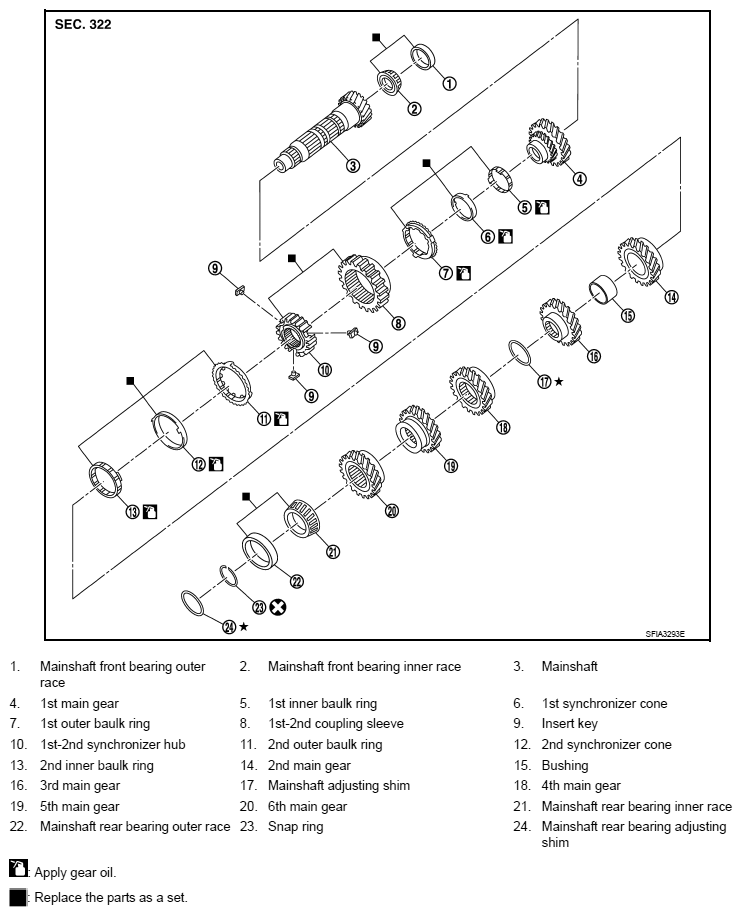

Fig 1: Exploded View Of Mainshaft And Gears
G08136241Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
