MODELS WITH iPod® CONNECTION FUNCTION AND HANDS-FREE PHONE SYSTEM

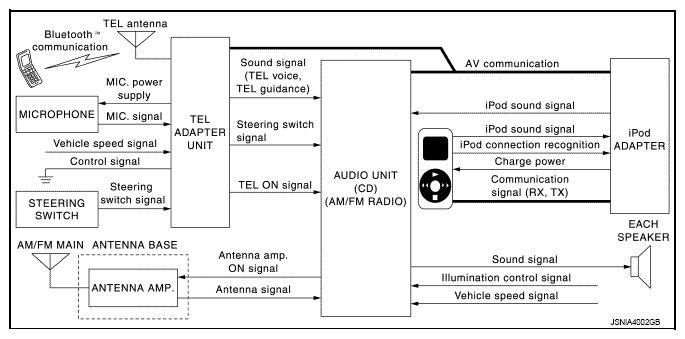

Fig 1: Identifying Audio System Diagram (Models With iPod® Connection Function And Hands-Free Phone System)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: An antenna base integrated with radio antenna amp. is adopted.
