Shift Lock Operation At "P" Position

When Brake Pedal Is Not Depressed (No Selector Operation Allowed) The shift lock solenoid (A) is turned OFF (not energized) and the solenoid rod (B) is extended with the spring when the brake pedal is not depressed (no selector operation allowed) with the ignition switch ON.

The connecting lock lever (C) is located at the position shown in the figure when the solenoid rod is extended. It prevents the movement of the pull rod (D). For these reasons, the selector lever cannot be shifted from the "P" position.

Fig 1: Shift Lock Operation Diagram At "P" Position (Brake Pedal Not Depressed)

Courtesy of NISSAN NORTH AMERICA, INC.

When Brake Pedal Is Depressed (Shift Operation Allowed)

The shift lock solenoid (A) is turned ON (energized) when the brake pedal is depressed with the ignition switch ON. The solenoid rod (B) is compressed by the electromagnetic force. The connecting lock lever (C) rotates when the solenoid is activated. Therefore, the pull rod (D) can be moved. For these reasons, the selector lever can be shifted to other positions.

Fig 2: Shift Lock Operation Diagram At "P" Position (Brake Pedal Depressed)

Courtesy of NISSAN NORTH AMERICA, INC.

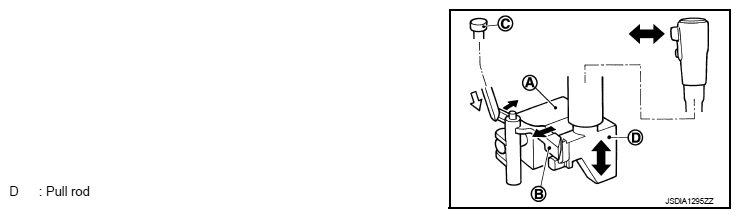

"P" POSITION HOLD MECHANISM (IGNITION SWITCH LOCK) The shift lock solenoid (A) is not energized when the ignition switch is in any position other than ON. In this condition, the shift mechanism is locked and "P" position is held. The operation cannot be performed from "P" position if the brake pedal is depressed with the ignition switch ON when the operation system of shift lock solenoid is malfunctioning. However, the lock lever (B) is forcibly rotated and the shift lock is released when the shift lock release button (C) is pressed from above. Then the selector operation from "P" position can be performed.

Fig 3: "P" Position Hold Mechanism (Ignition Switch Lock) Operation Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
