ECU Info.
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

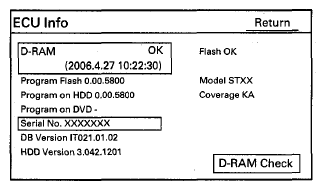

This screen looks for problems in the audio-navigation unit. When you initiate this diagnosis, the audio-navigation unit may freeze or delay up to a minute while the diagnosis runs.
- D-RAM is NG, replace the audio-navigation unit.
- Program Flash: Displays the version of the navigation software in memory.
- Program on HDD: If displayed, this value represents the version of the navigation software on the audio-navigation unit HDD.
- Program on DVD: If displayed, this value represents the version of the navigation software on the audio-navigation unit DVD.
- Serial No. should be the same as the serial number found on the underside of the audio-navigation unit. You need this number to obtain the security code from the interactive Network (iN) system.
- DB Version: Displays the version of the DB on the audio-navigation unit HDD.
- HDD Version: Display the version of the HDD.
- D-RAM check is for factory use only.
