FTP Sensor Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
Disconnect the FTP sensor connector (A).

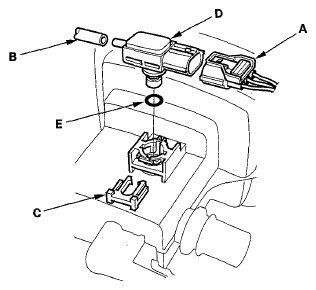

Fig 1: Identifying FTP Sensor Connector, Hose, Retainer & FTP Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hose (B), remove the retainer (C), and remove the FTP sensor (D).
Install the parts in the reverse order of removal with a new O-ring (E).
