Component Parts Location

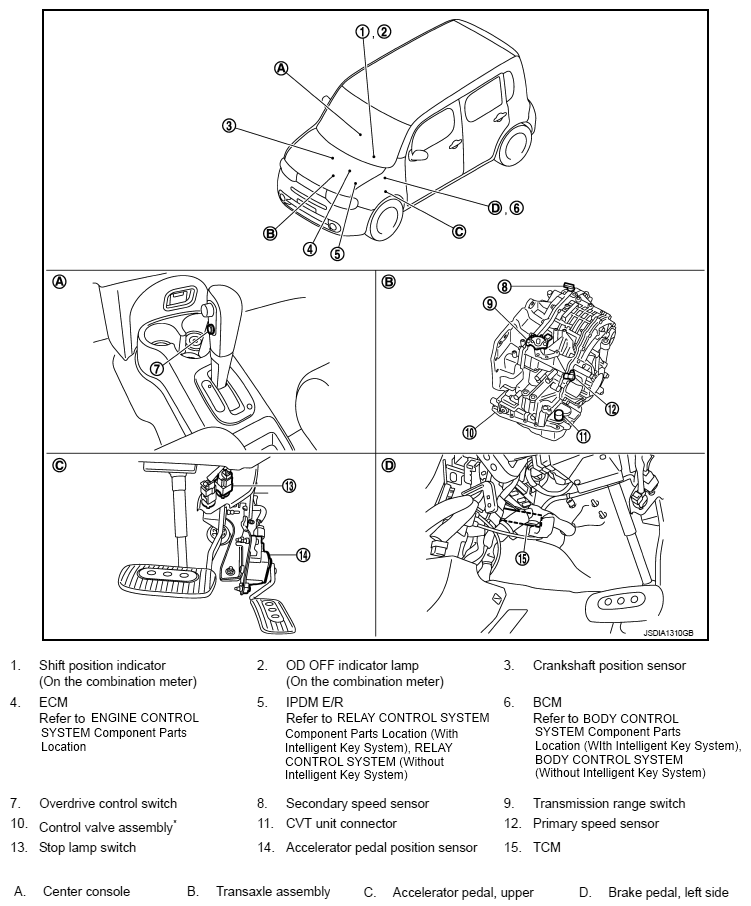

Fig 1: Control System Components Location

G08136289

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in control valve assembly.

CVT fluid temperature sensor
Torque converter clutch solenoid valve
Lock-up select solenoid valve
Line pressure solenoid valve
Secondary pressure solenoid valve
Secondary pressure sensor
Step motor
ROM assembly

*: Control valve assembly is included in transaxle assembly.
