Ignition Timing

Attach timing light to loop wire as shown below.

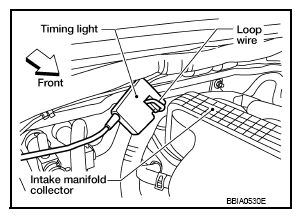

Fig 1: Identifying Timing Light & Loop Wire
Courtesy of NISSAN NORTH AMERICA, INC.
Check ignition timing.
Any of following two methods may be used.

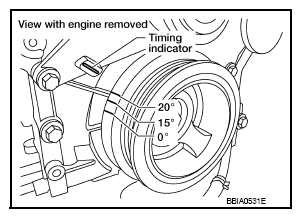

Fig 2: Identifying Timing Marks
Courtesy of NISSAN NORTH AMERICA, INC.
