Accelerator Control System: Component

WARNING: This page is about a different car, the 2011 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

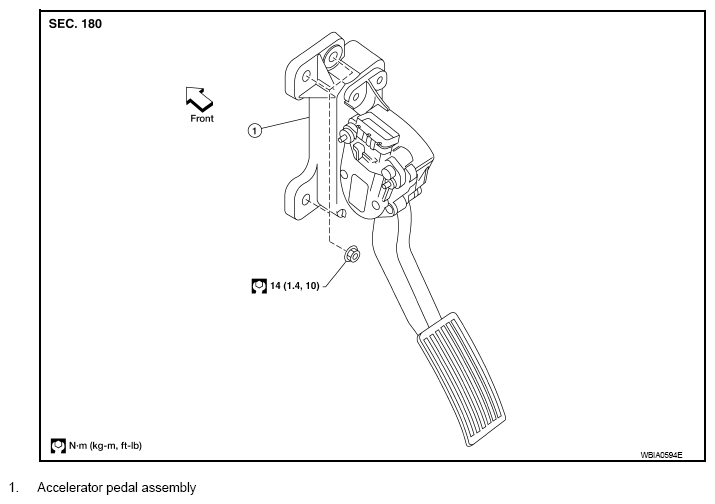

Fig 1: Exploded View Of Accelerator Pedal Assembly With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not disassemble the accelerator pedal assembly.
Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
Avoid damage from dropping the accelerator pedal assembly during handling.
Keep the accelerator pedal assembly away from water.
