CONSULT Function (BCM)
DIAGNOSIS SYSTEM (BCM)
COMB SW : CONSULT Function (BCM - COMB SW)

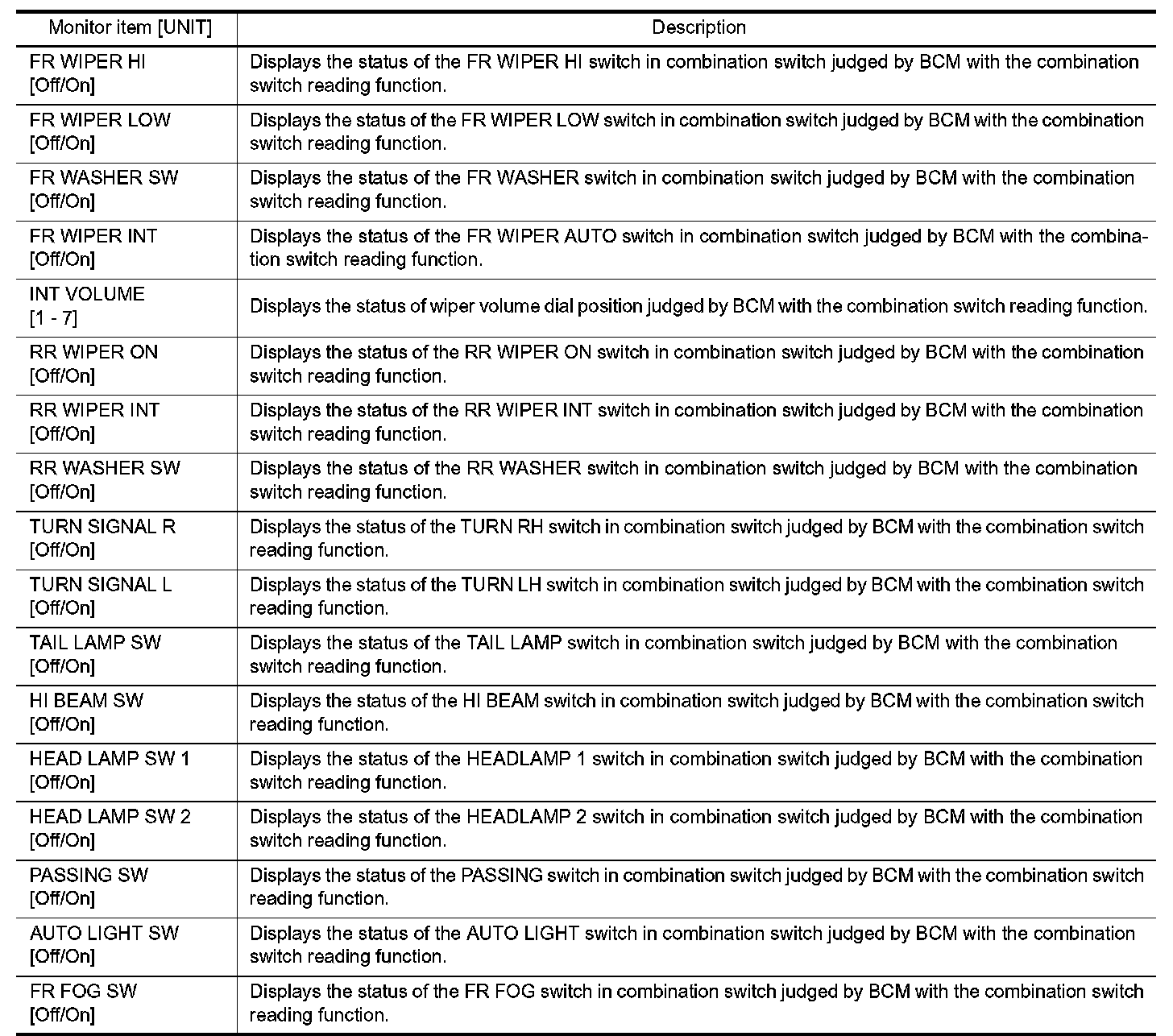

DATA MONITOR
