Door Lock




DIAGNOSIS SYSTEM (BCM)

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

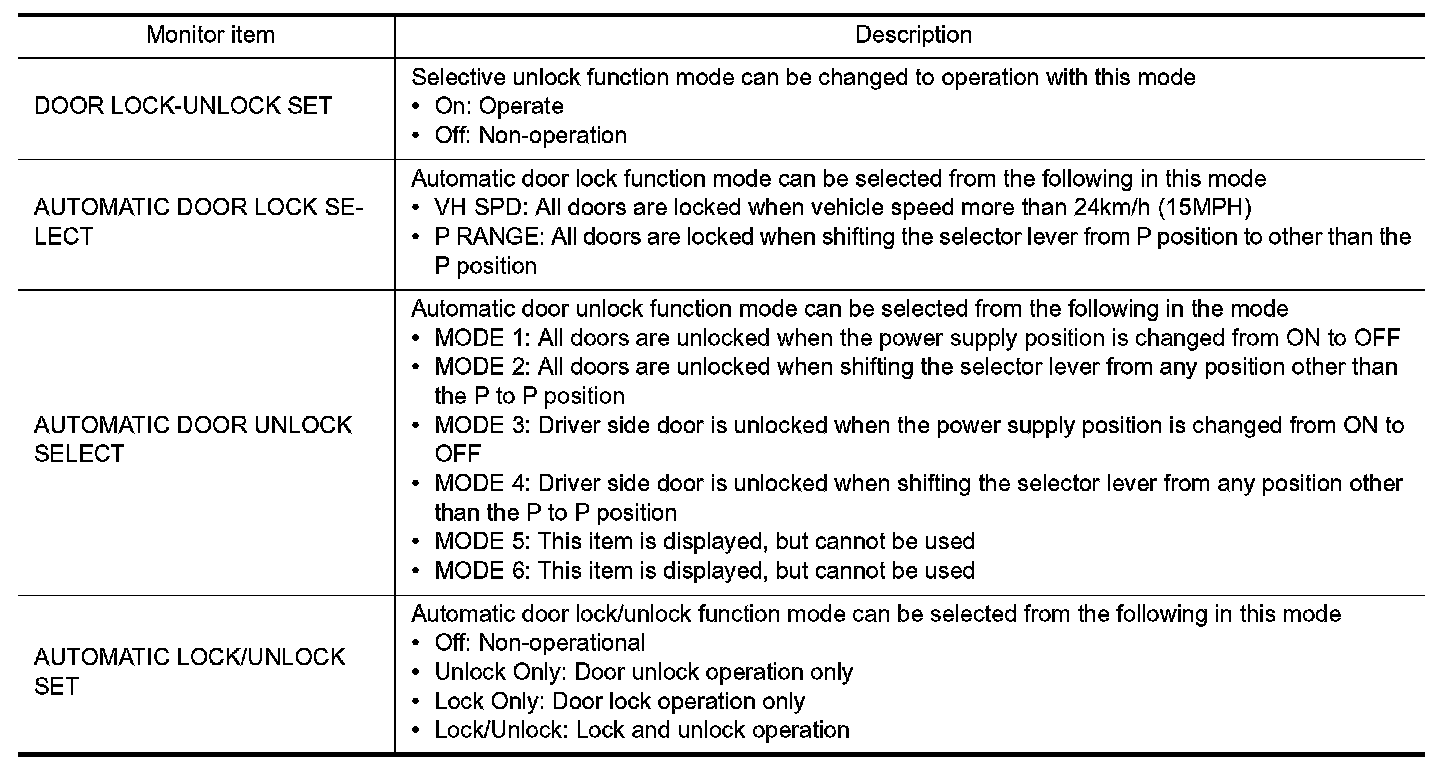

WORK SUPPORT

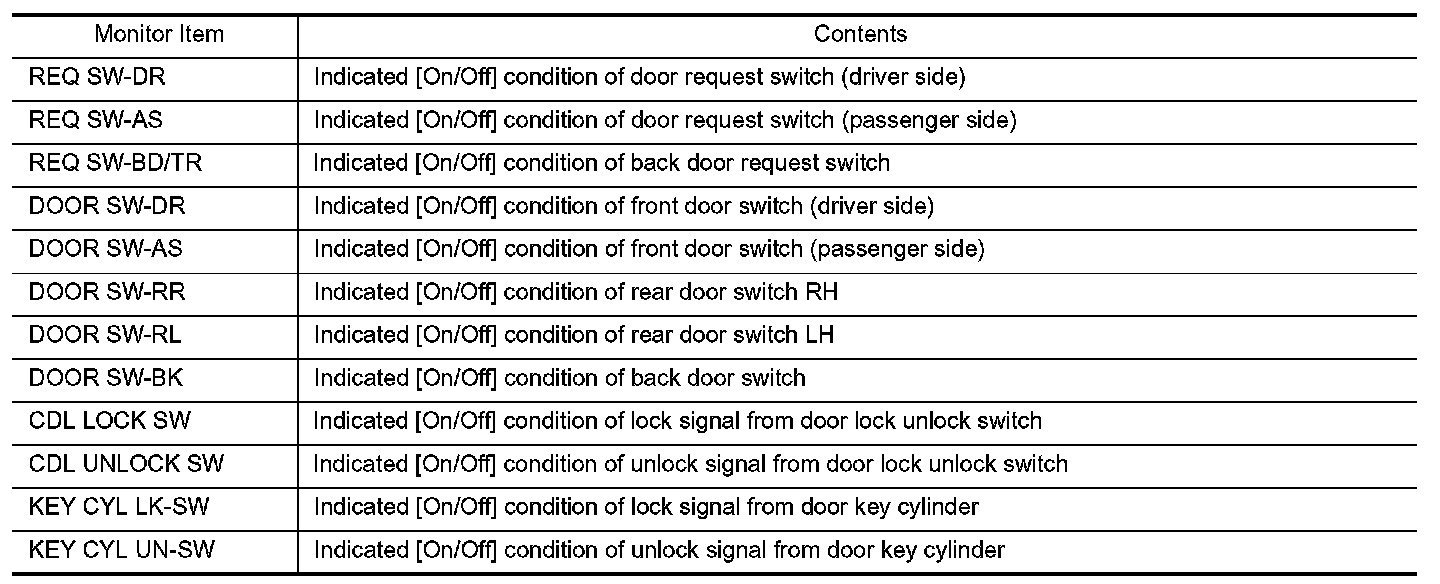

DATA MONITOR

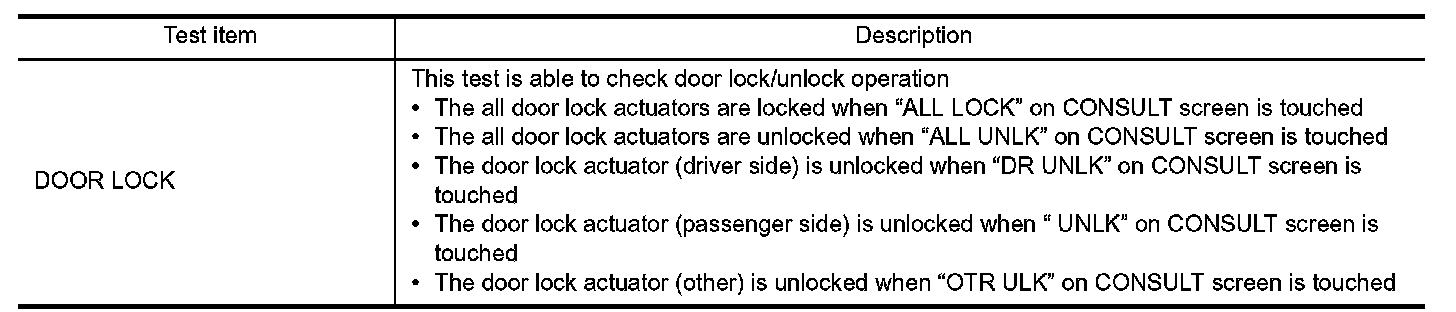

ACTIVE TEST
