Flasher




DIAGNOSIS SYSTEM (BCM)

FLASHER : CONSULT Function (BCM - FLASHER)

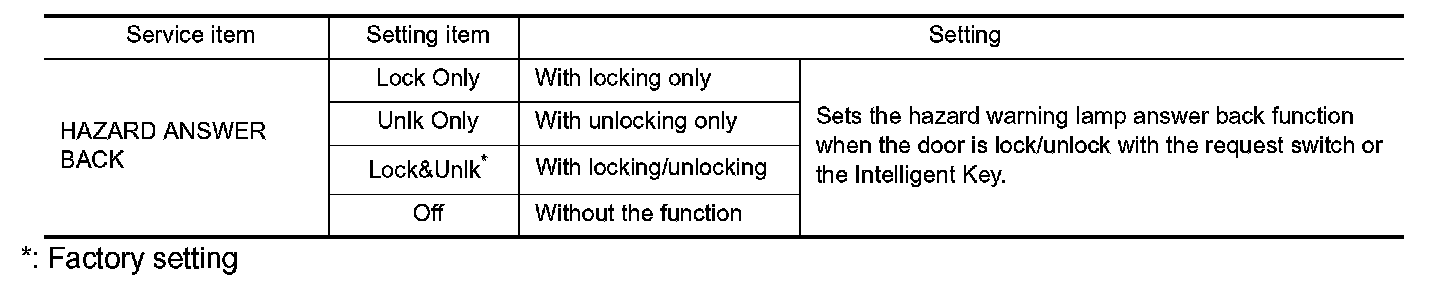

WORK SUPPORT






*: Factory setting

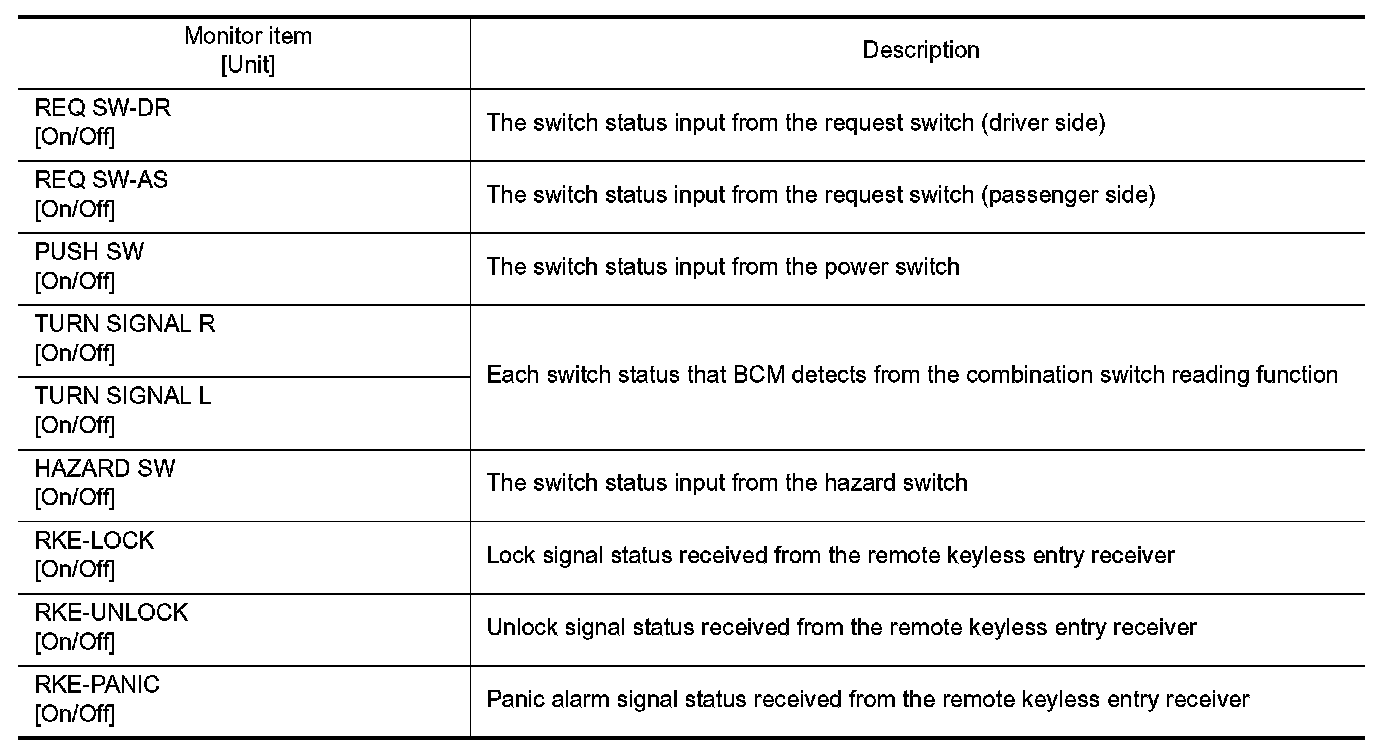

DATA MONITOR

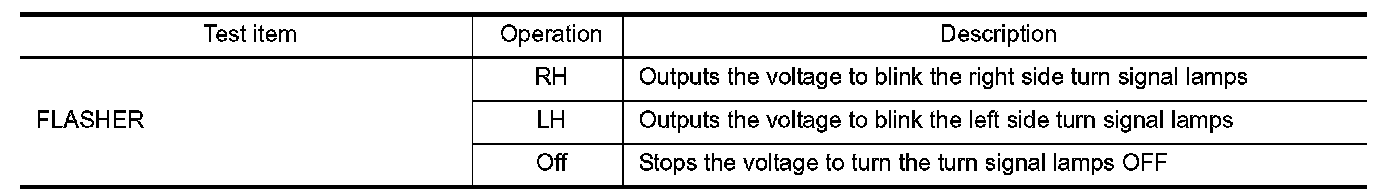

ACTIVE TEST
