Intelligent Key

DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

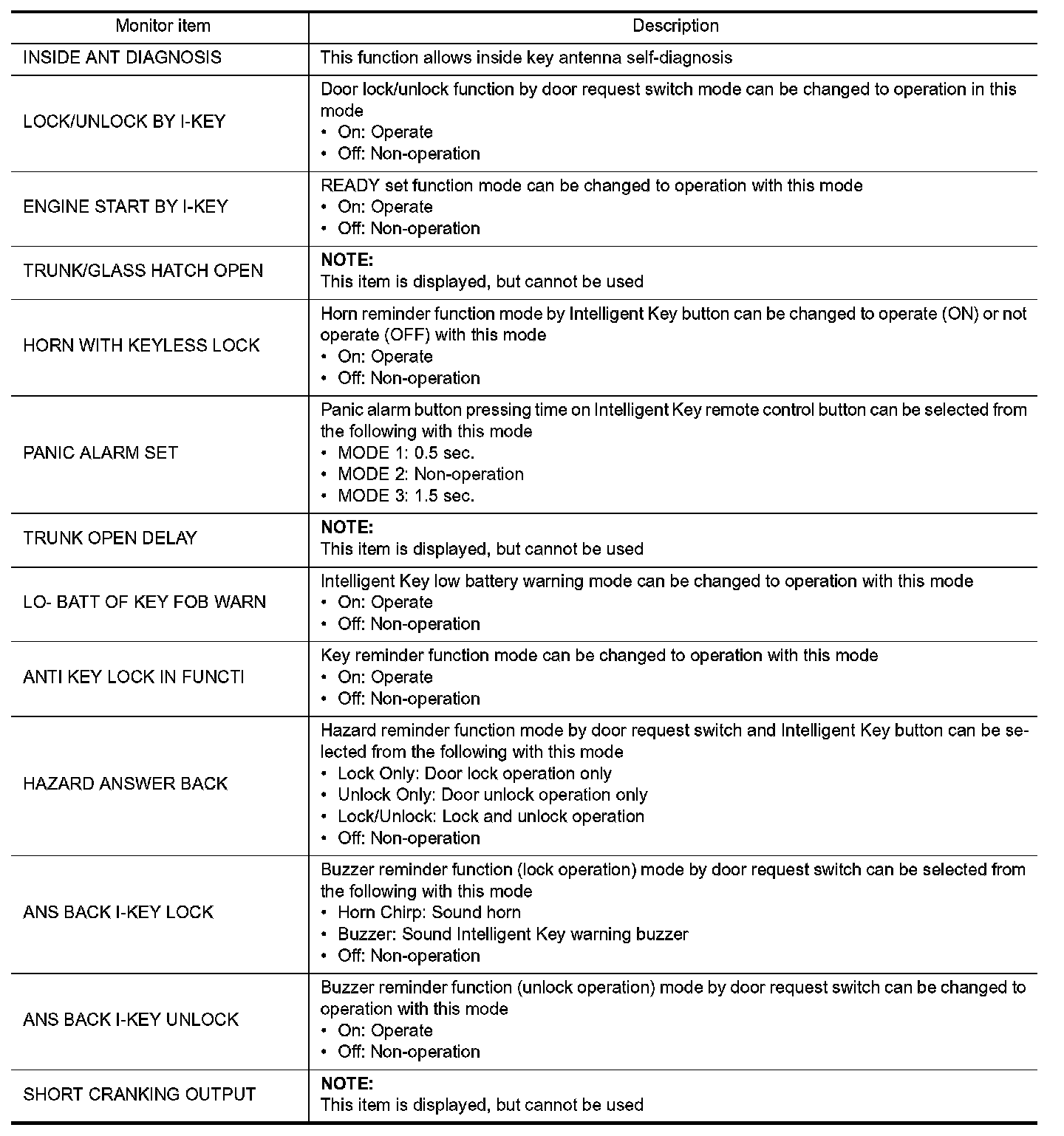

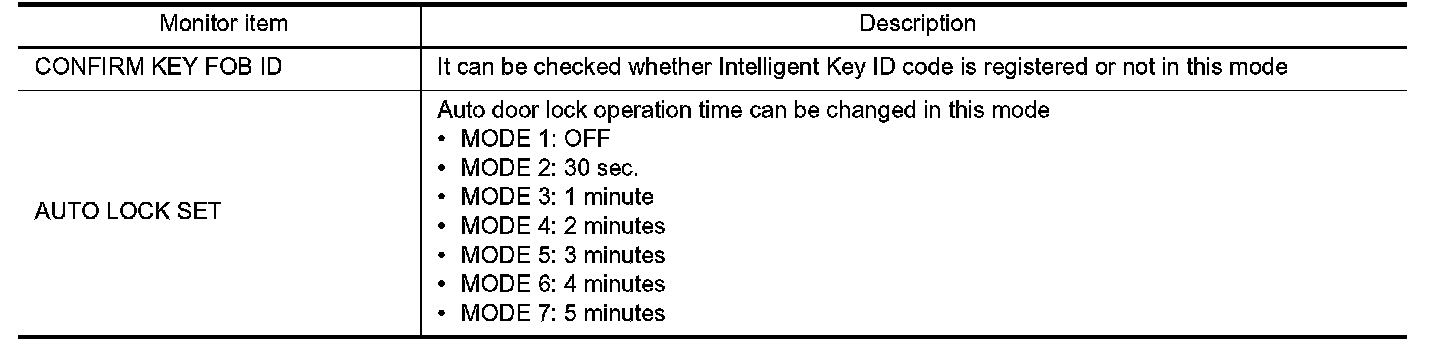

WORK SUPPORT












SELF-DIAG RESULT

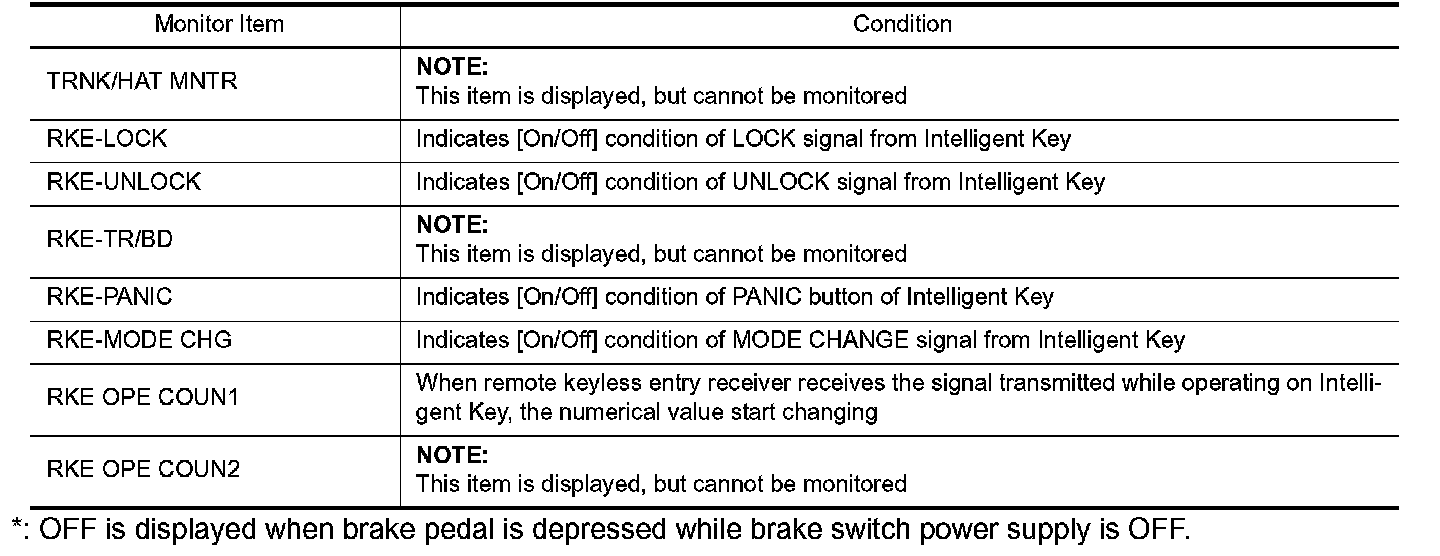

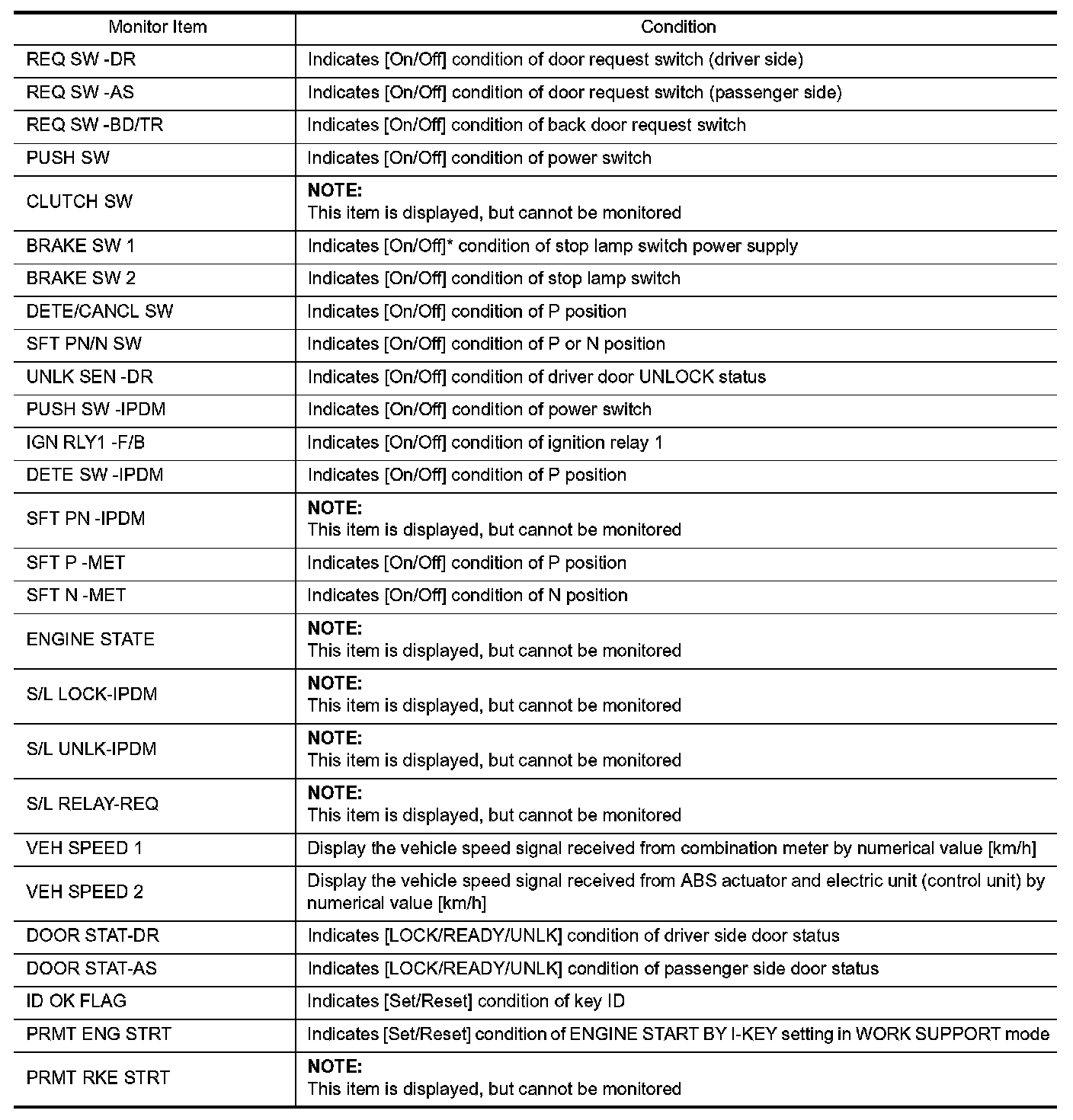

DATA MONITOR











*: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

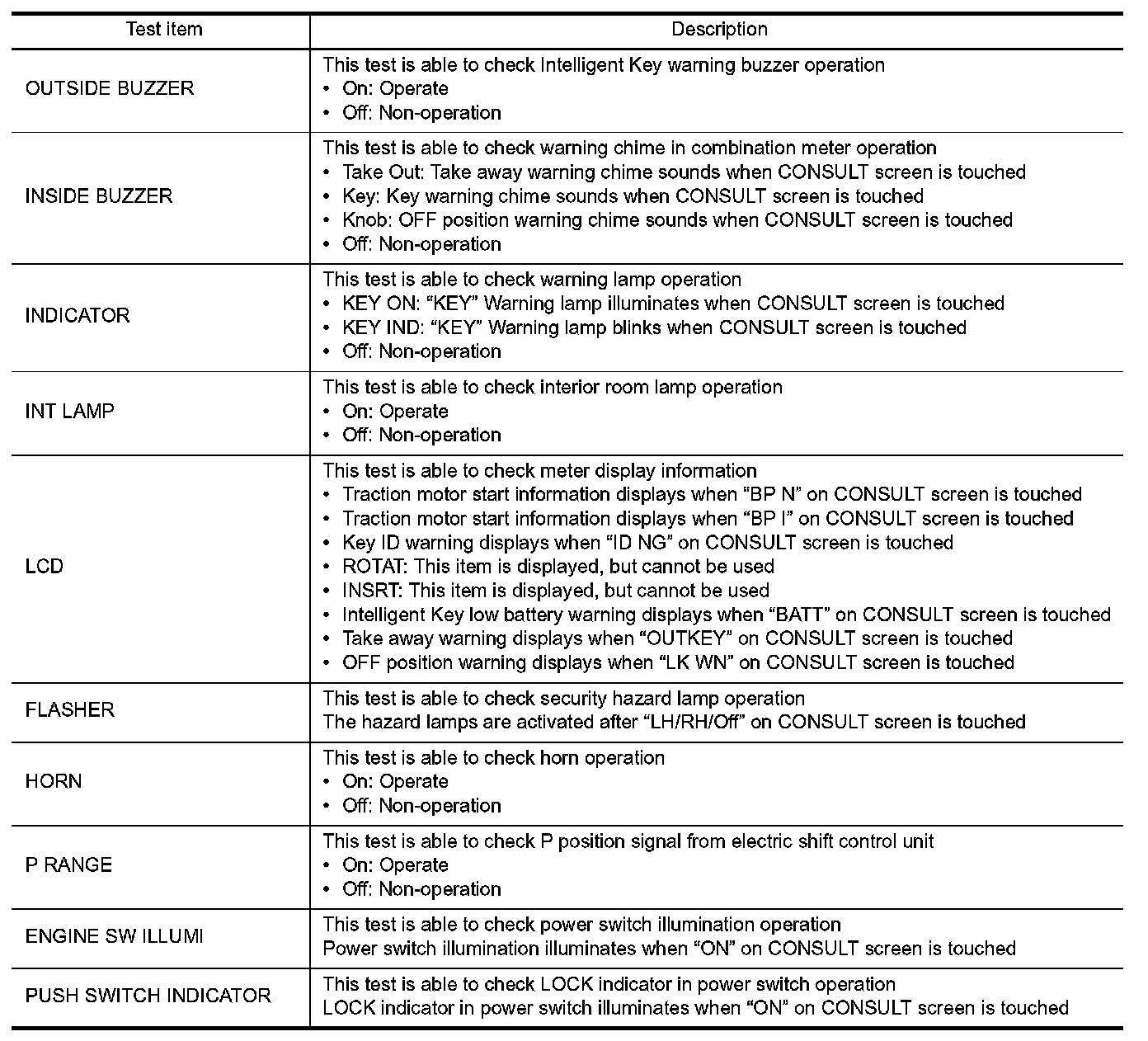

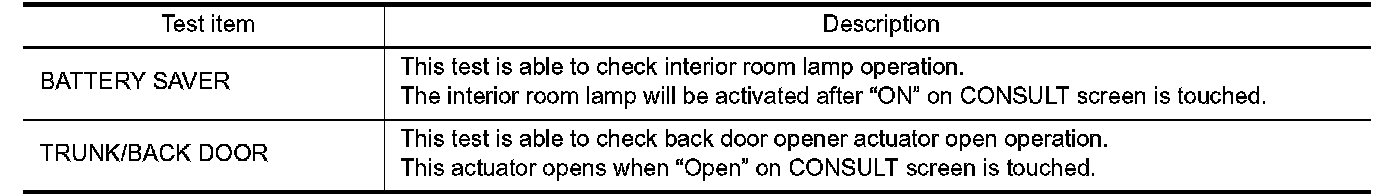

ACTIVE TEST
