Key Reminder Function

SYSTEM (INTELLIGENT KEY SYSTEM)

KEY REMINDER FUNCTION : System Description


SYSTEM DIAGRAM







BASIC OPERATION

Key reminder is the function that prevents the key from being left in the vehicle.

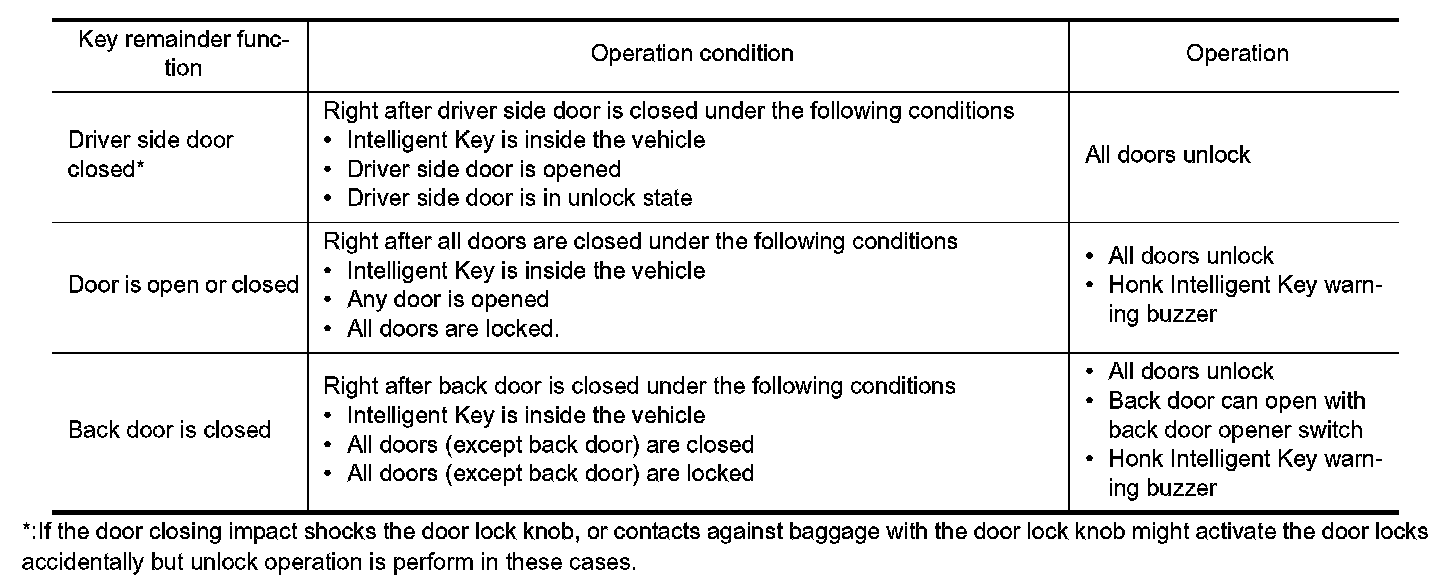

Key reminder has the following 3 functions.





NOTE:
- The above function operates when the Intelligent Key is inside the vehicle. However, there may be times when the Intelligent Key cannot be detected, and this function does not operate when the Intelligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the Intelligent Key is in the door pocket for the open door.
