Keyless Entry Receiver: Service and Repair




REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation


REMOVAL

1.Remove the glove box lid. Refer to "Removal and Installation" Removal And Installation

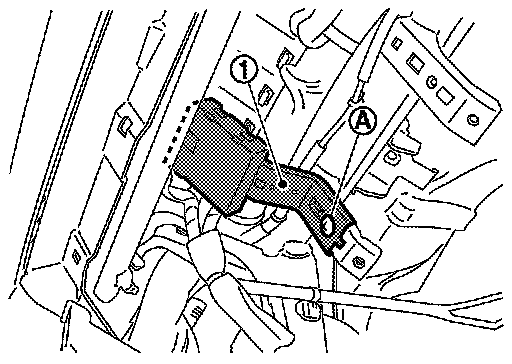

2.Remove the remote keyless entry receiver mounting bolt (A), and then remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal."Removal and Installation" Removal And Installation
