Keyless Systems - Intelligent Key(R) Battery Replacement

Classification: EL09-042B

Reference: NTB09-118B

Date: June 8, 2012

INTELLIGENT KEY BATTERY REPLACEMENT AND BATTERY DISCHARGE INDICATOR RESET

This bulletin was amended to include additional models, add the "IMPORTANT" statement below, and change the NOTE below. Please discard all previous copies.

APPLIED VEHICLES: Vehicles equipped with Intelligent Key

IF YOU CONFIRM

The battery in the Intelligent Key needs to be replaced for any reason.

ACTION

1. Open the Intelligent Key as described in the Service Procedure and replace the battery.

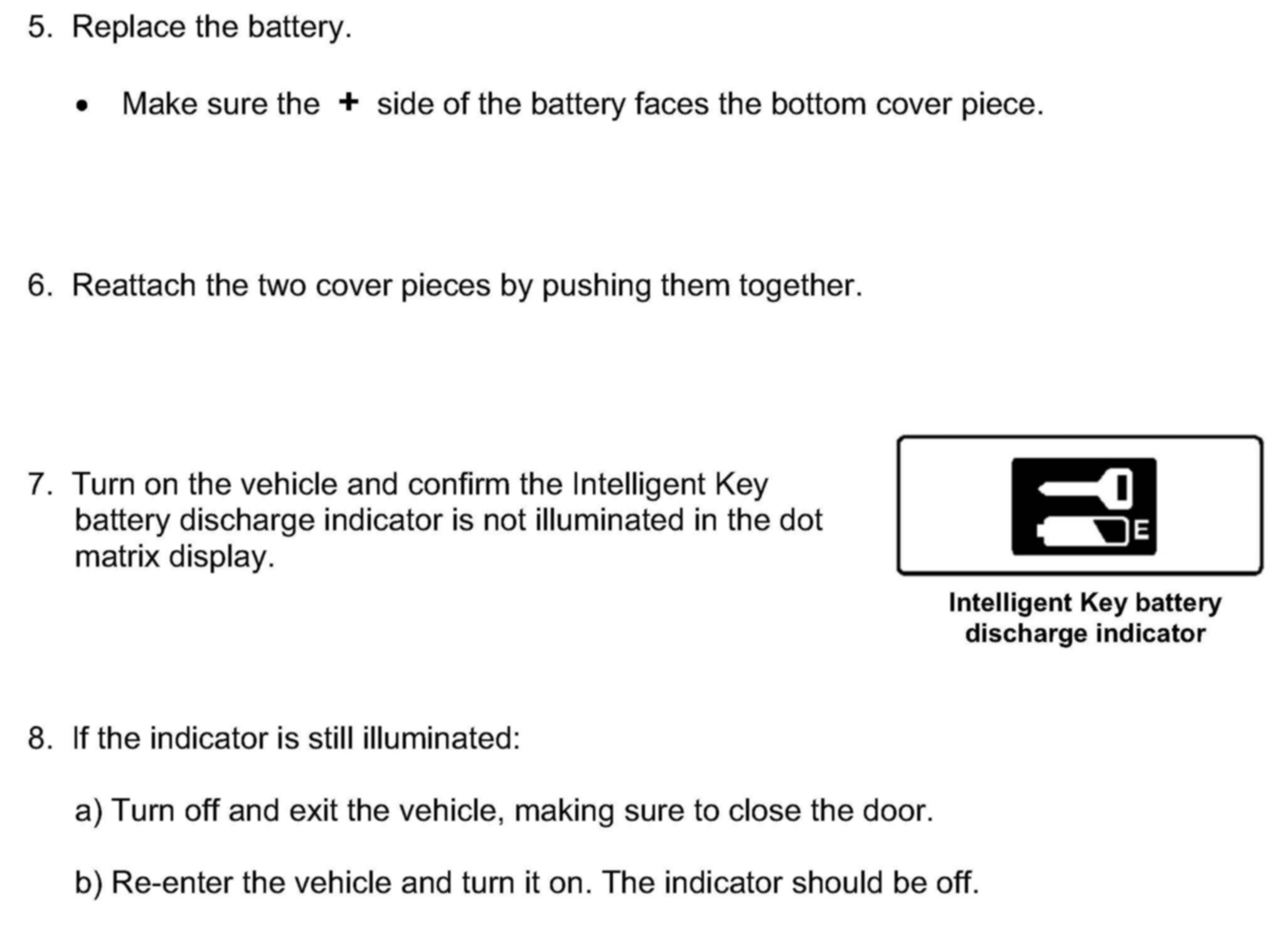

2. Confirm the battery discharge indicator has reset/is not illuminated in the dot matrix display.





NOTE:

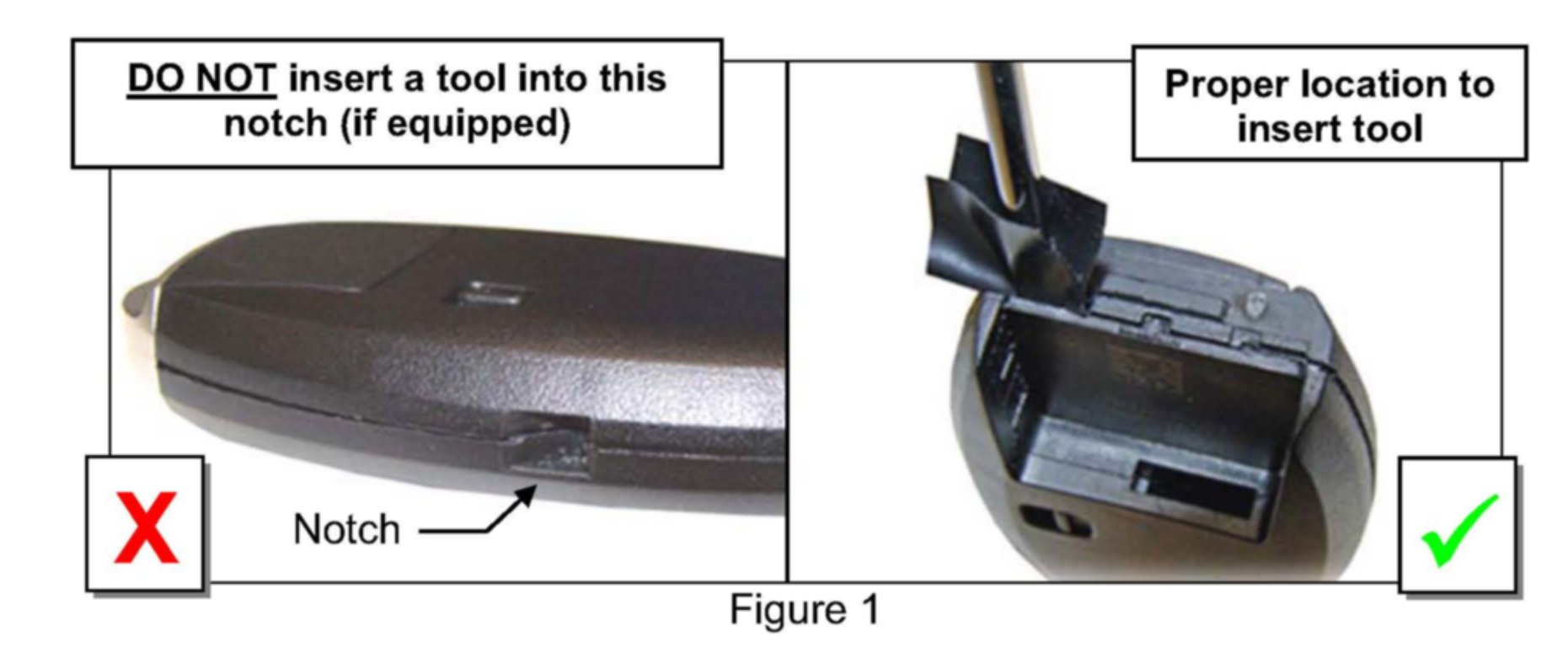

DO NOT insert a tool into the notches of the Intelligent Key (if equipped) to pry it open, as this may damage the printed circuit board (PCB).

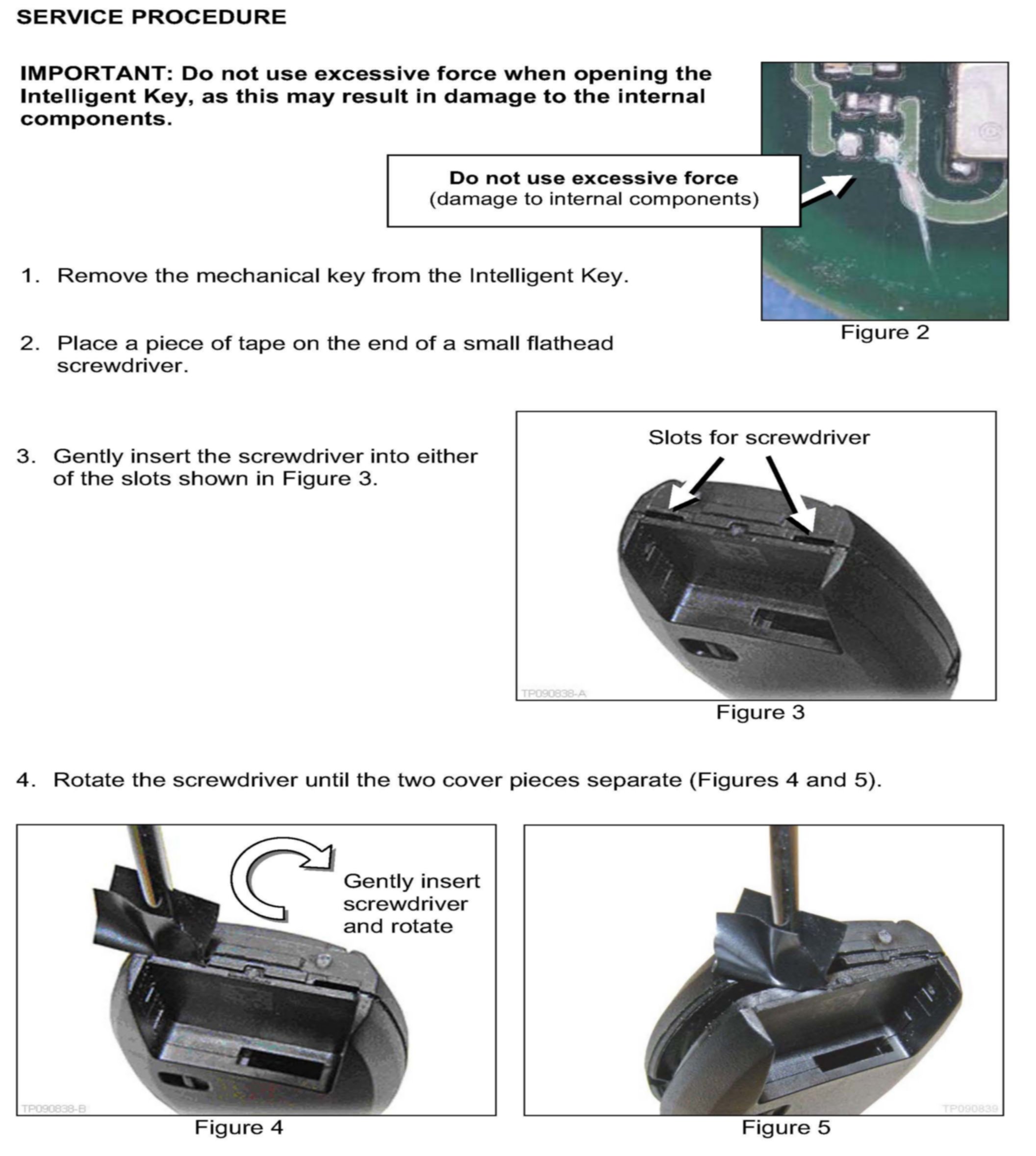

SERVICE PROCEDURE
