Removal And Installation

IPDM E/R

Removal and Installation


CAUTION:
To prevent damage to the parts, IPDM E/R integrated relays cannot be removed.

REMOVAL

1.Remove 12V battery. Refer to "Precaution for Removing 12V Battery" IPDM E/R.

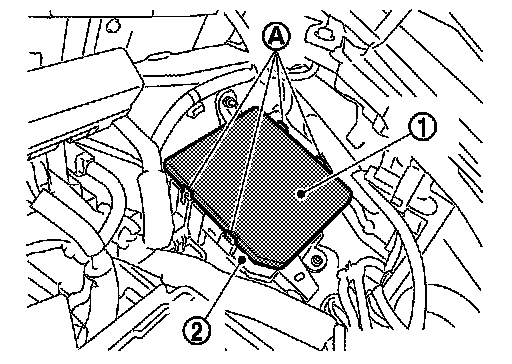

2.Press and expand pawls (A) on lateral side of IPDM E/R cover and remove IPDM E/R (1) from IPDM E/R cover B (2).
3.Disconnect the harness connector and then remove the IPDM E/R.

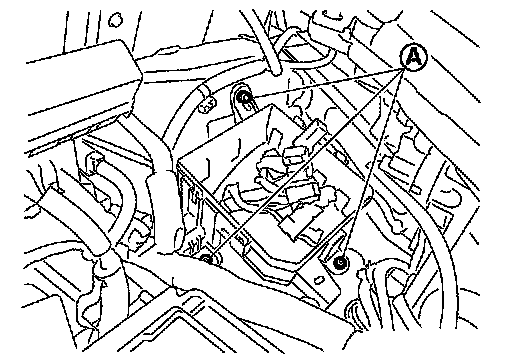

4.Remove IPDM E/R cover B mounting nuts (A).

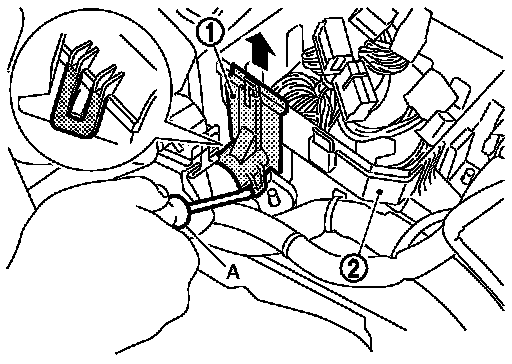

5.Insert a remover tool (A) between IPDM E/R cover A (1) and
IPDM E/R cover B (2), disengage pawls, and remove IPDM E/R
cover A.
6.Remove IPDM E/R cover B.

INSTALLATION

Install in the reverse order of removal.
