CONSULT Function (BCM - Intelligent Key)




DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

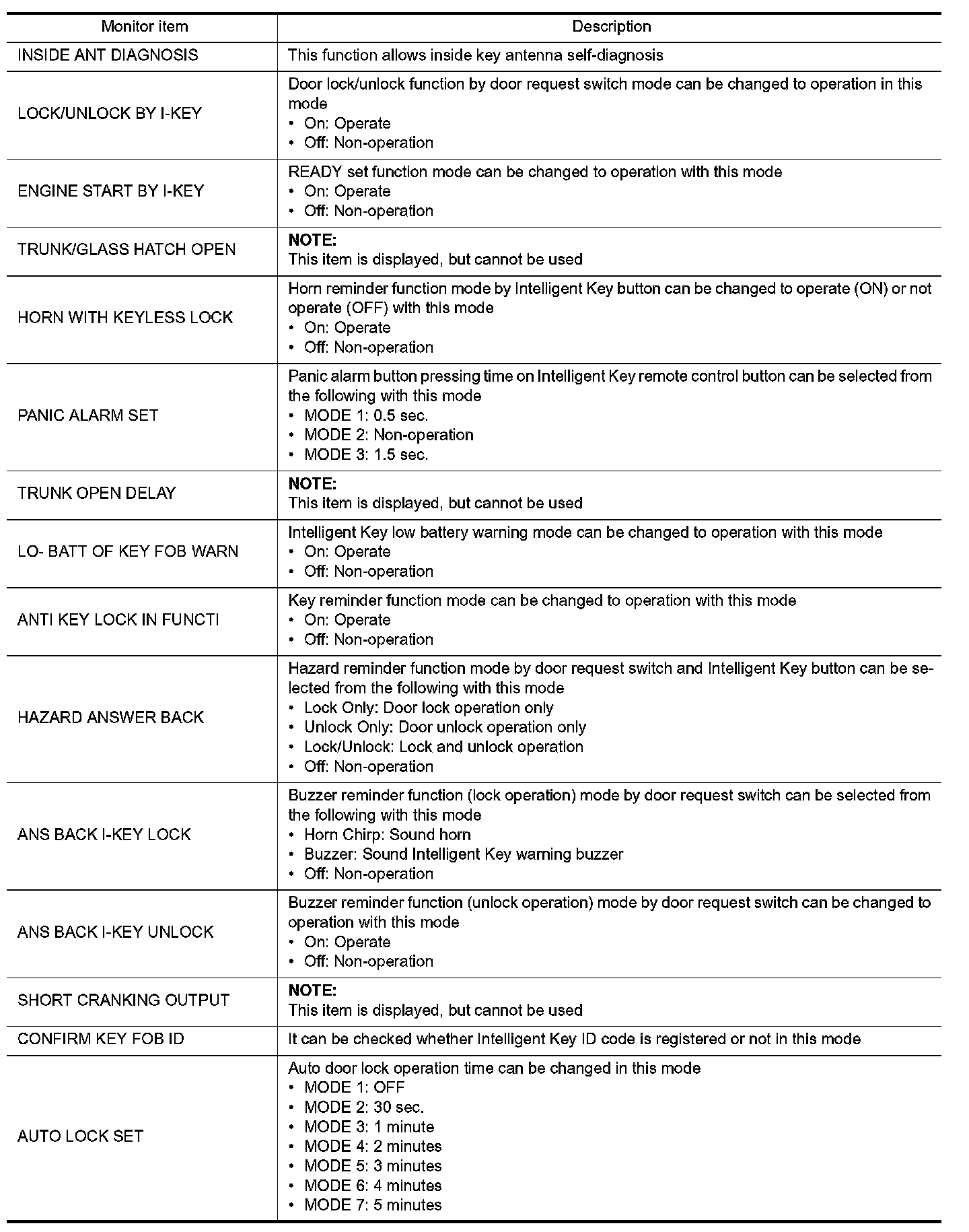

WORK SUPPORT







SELF-DIAG RESULT

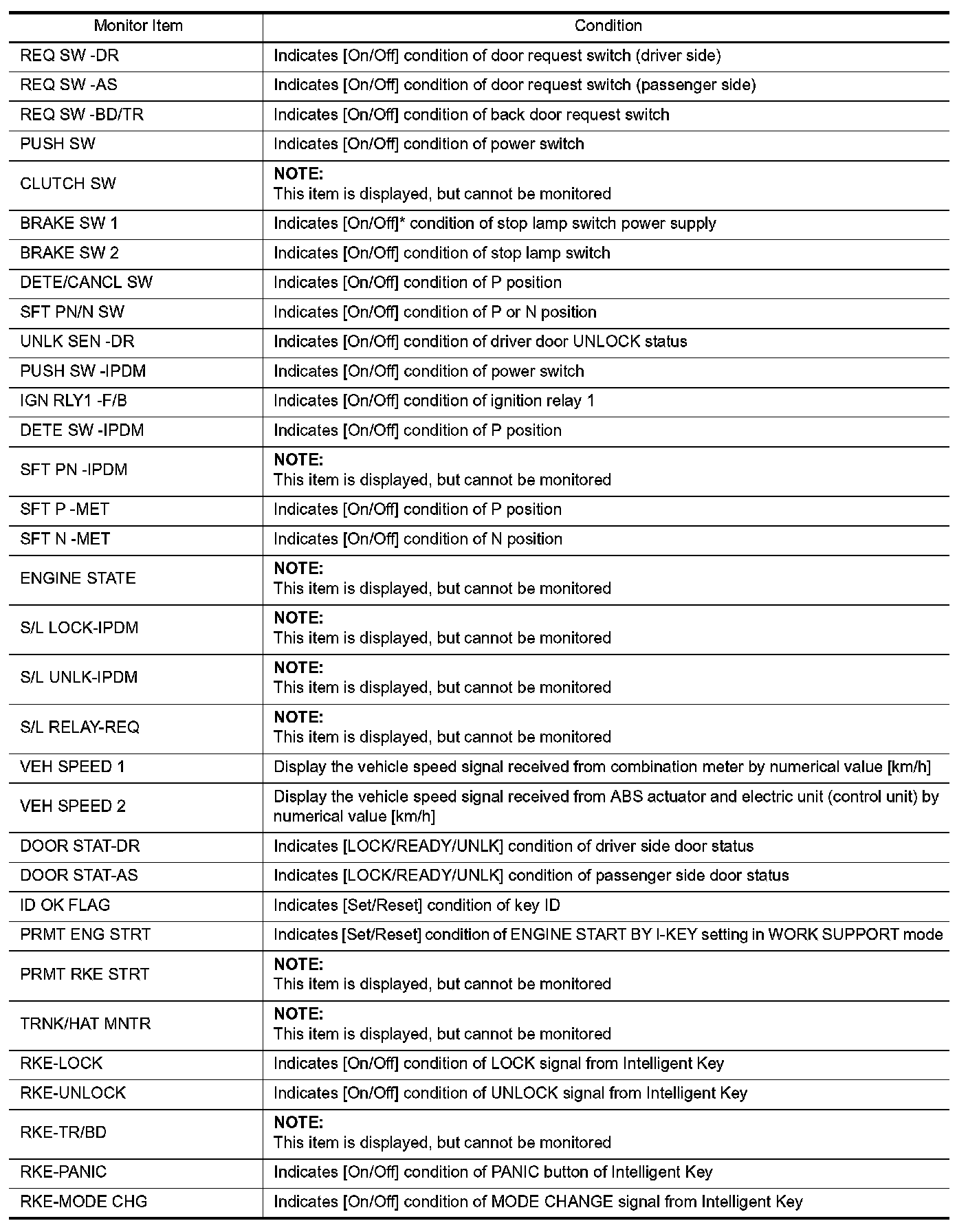

DATA MONITOR

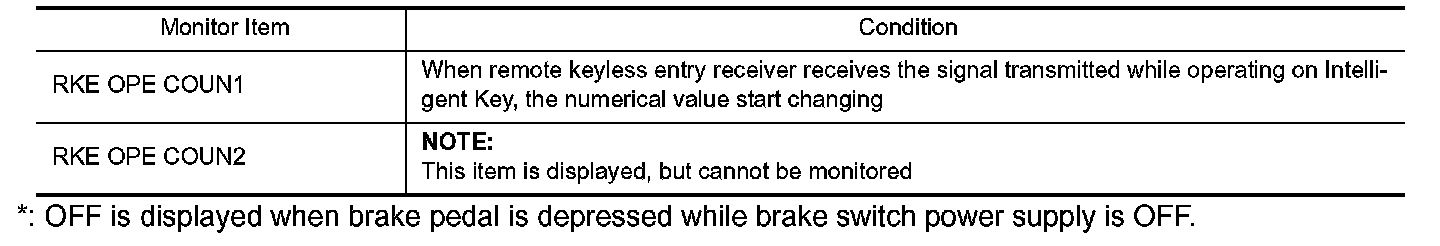

*: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

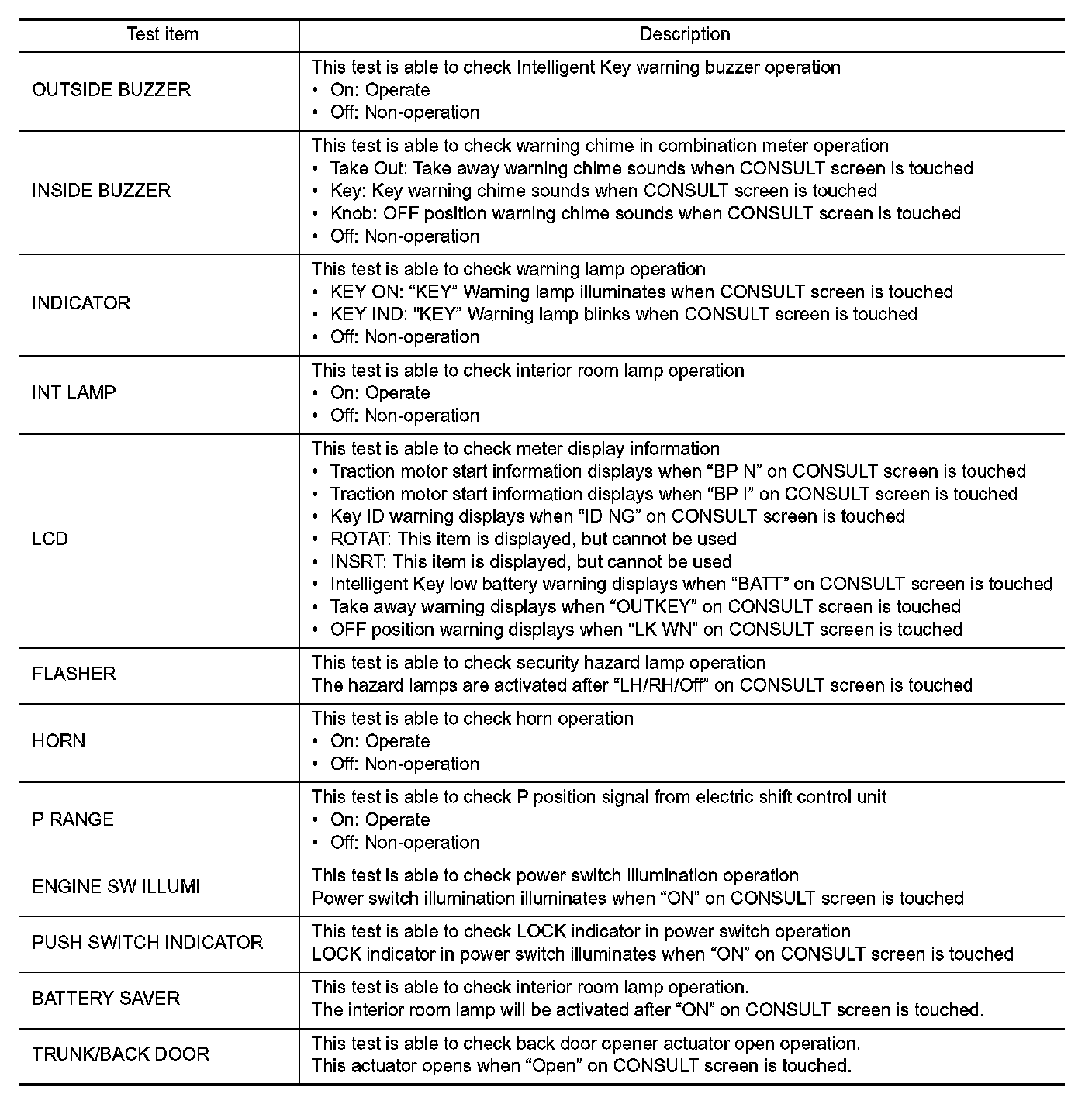

ACTIVE TEST
