Description

INSPECTION AND ADJUSTMENT

CONFIGURATION (BCM) : Description

Vehicle specification needs to be written with CONSULT because it is not written after replacing BCM.

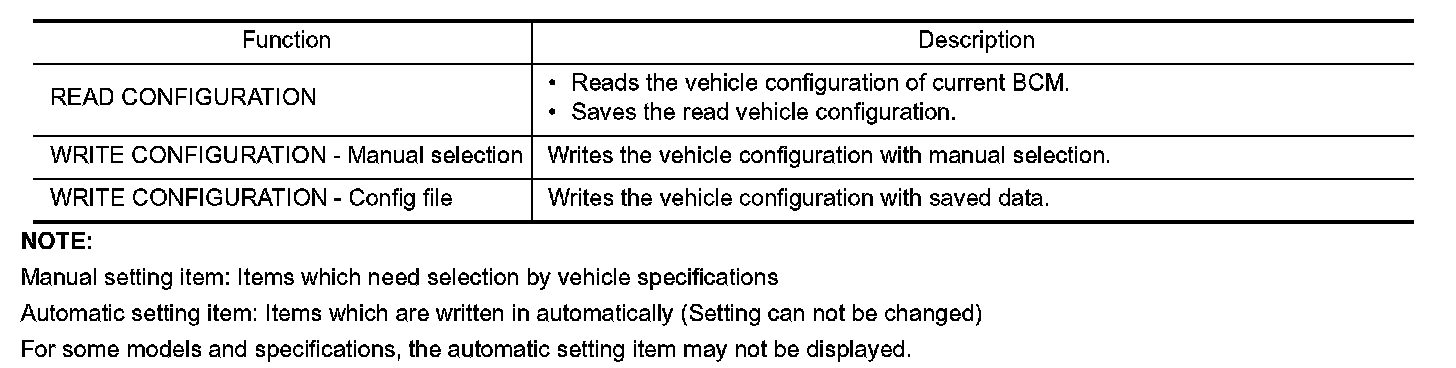

Configuration has three functions as follows.






CAUTION:
When replacing BCM, always perform "WRITE CONFIGURATION" with CONSULT. Or not doing so, BCM control function does not operate normally.
- Complete the procedure of "WRITE CONFIGURATION" in order.
- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
- Never perform "WRITE CONFIGURATION" except for new BCM.
- If you set incorrect "WRITE CONFIGURATION", incidents might occur.
